Air Injection Pump: Service and Repair

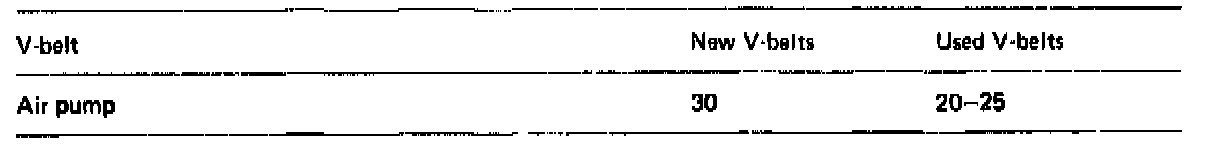

Adjusting values of V-belt (KG scale on measuring instrument)




Special tool

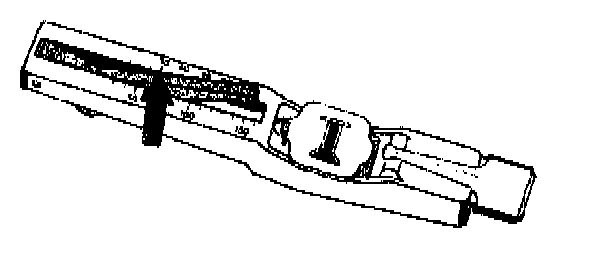

Measuring instrument (Krikit) 001 589 69 21 00






NOTE: For handling of measuring instrument refer to operating instructions. Specified adjusting data refer to KG scale of measuring instrument (arrow).


Removal:

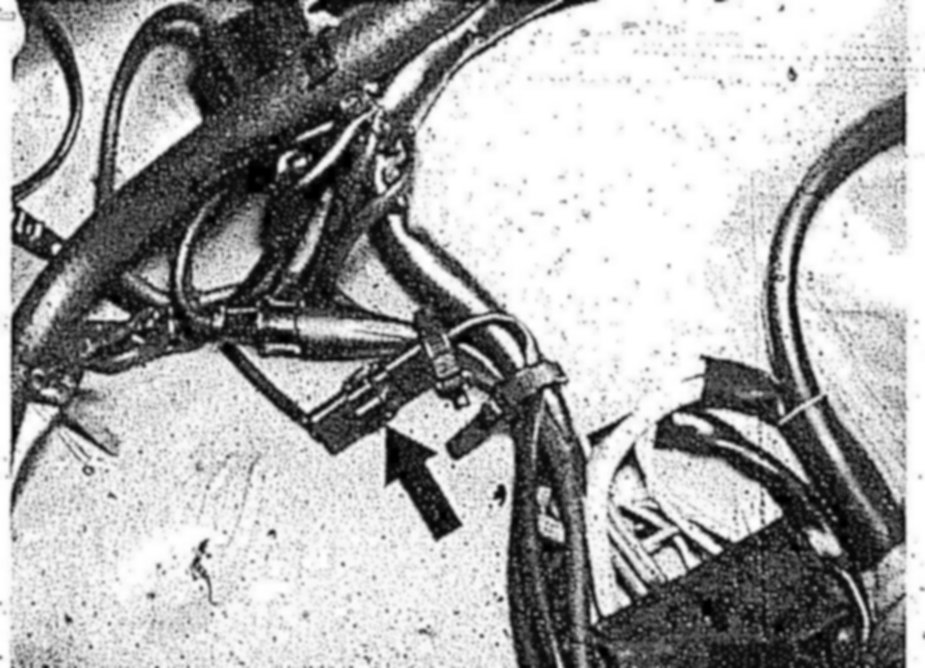

1 Separate coupling (arrow) for air pump and remove line from cable straps









2 Remove contour hoses.

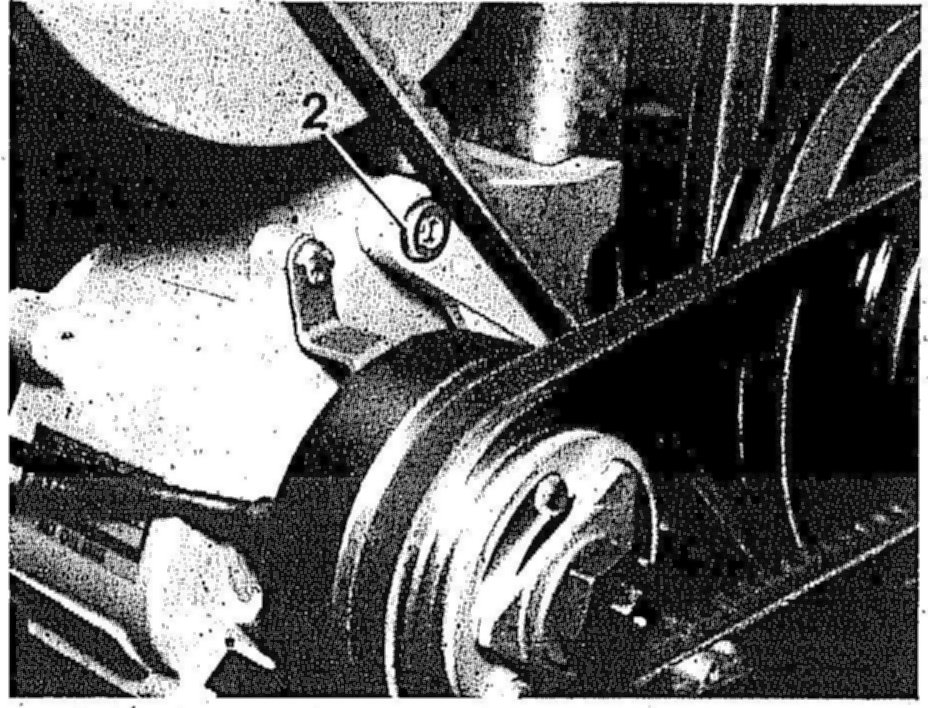

3 Loosen fastening screws (1 and 2) and unscrew.
4 Take off V-belt and remove air pump.

NOTE: Remove and install electromagnetic clutch. Service and Repair


Installation:
5 For installation proceed vice versa.

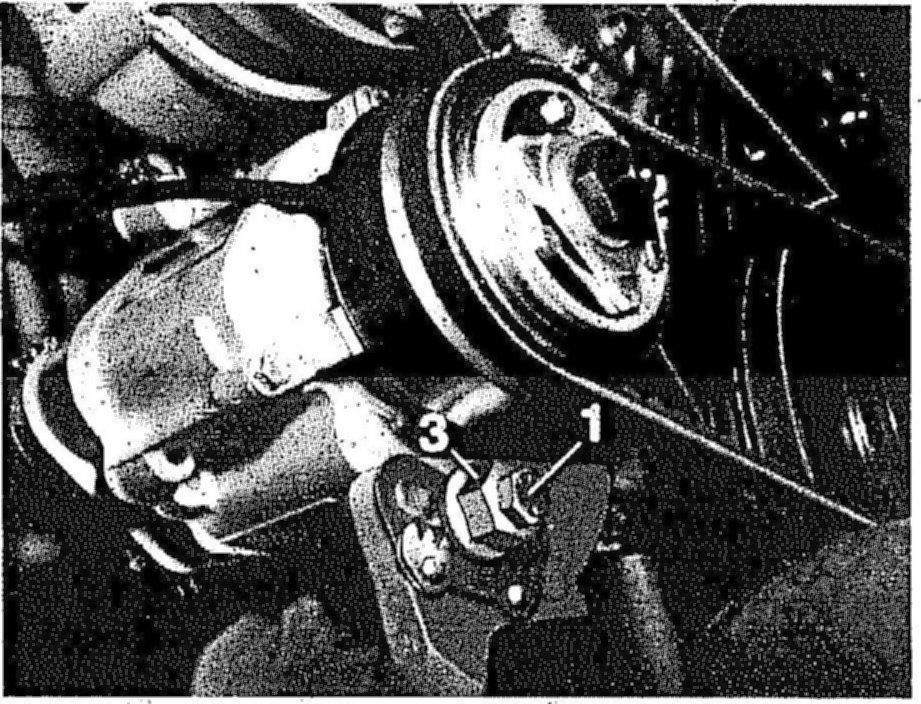

6 Tension V-belt with tensioning wheel (3) and tighten fastening screws (1 and 2).
