Air Injection Pump Clutch: Service and Repair

Designation: Electromagnetic cutoff clutch 12 V

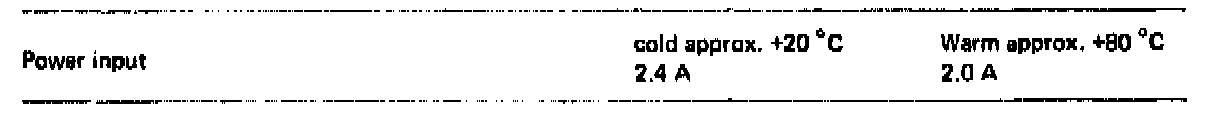

Test Values:

NOTE: Prior to removing electromagnetic clutch check power input At a power input of more than 3.0 amps, renew clutch.

Remove air pump for renewing clutch. Service and Repair


Removal:

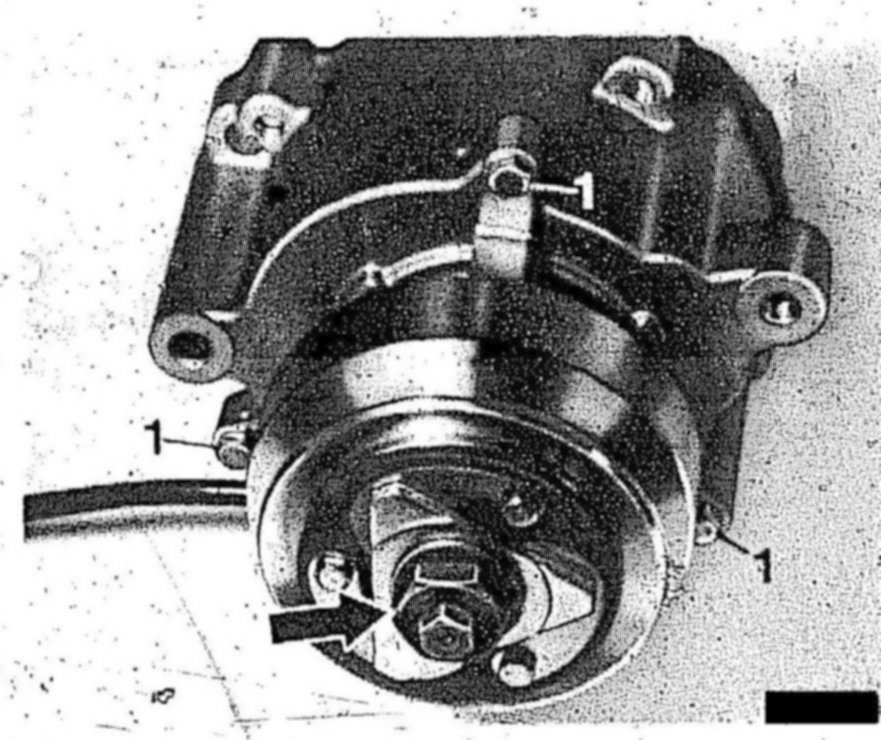

1 Loosen hex. nut (arrow) and unscrew.
2 Unscrew hex. screws (1) and remove clutch.


Installation:

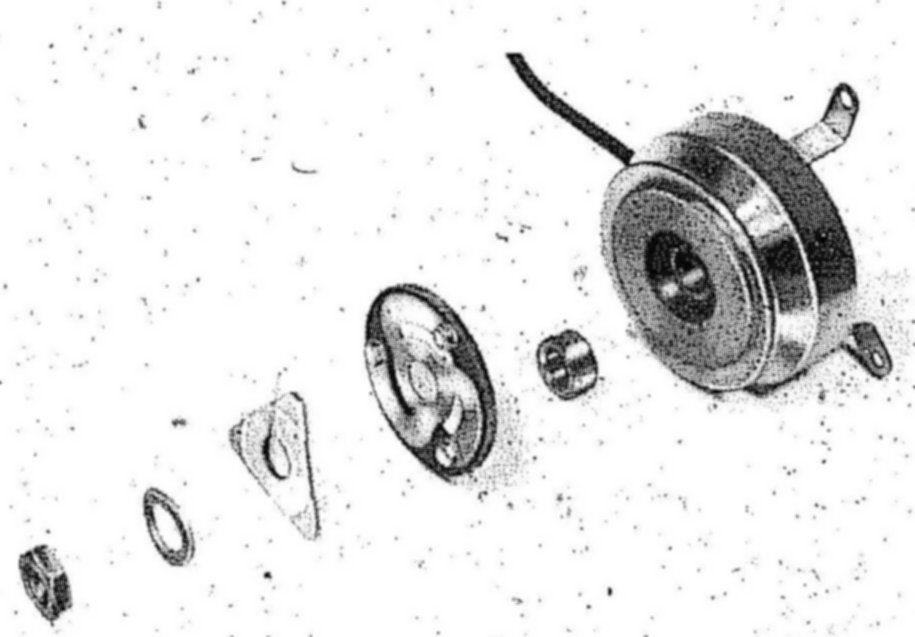

3 For installation proceed vice versa. Pay attention to correct assembly of components as shown in Fig.
