Profile Strip Removal

Removal and Installation of Wiper Blade Rubber Profile Strip

Removal

1 Removal wiper blade. Wiper Blade Removal

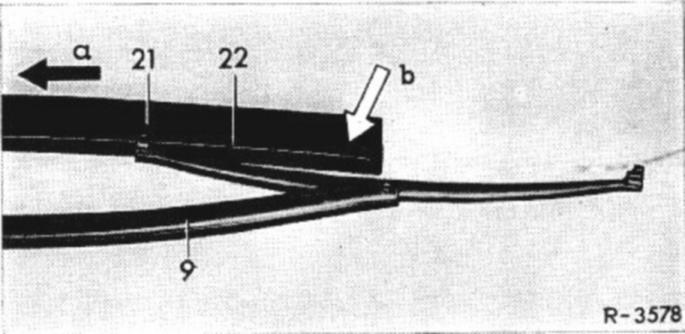

2 Slide rubber profile strip (21) with the two holding springs (22) with one end out of holder (b) of wiper blade (9) in direction of arrow (a).

3 Pull out both holding springs (22).

4 Remove rubber profile strip (21) from holder of wiper blade (9).

Installation

5 Loosely insert rubber profile strip (21) without holding springs (22) into a holder of wiper blade (9). Leave long end free.

6 Slip both holding springs (22) into rubber profile strip.

7 Introduce free end of rubber profile strip including holding spring into other holder of wiper blade to engage (arrow b).

8 Install wiper blade.
