Wiper Arm: Service and Repair

Removal and Installation of Wiper Arm

Removal

1 Lift wiper arm from windshield.





2 Disengage detent of covering cap by slightly lifting.

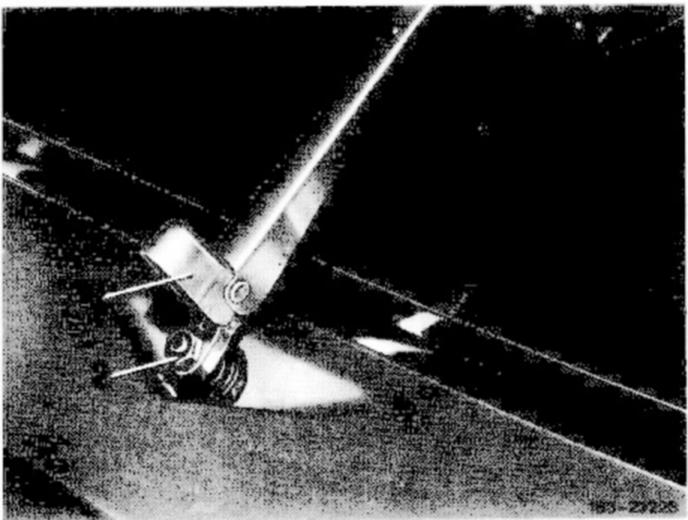

3 Place wiper arm again against windshield glass while simultaneously completely lifting covering cap (1).

4 Unscrew fastening nut (2) and pull wiper arm from bearing shaft.

Installation

5 For installation proceed vice versa.
