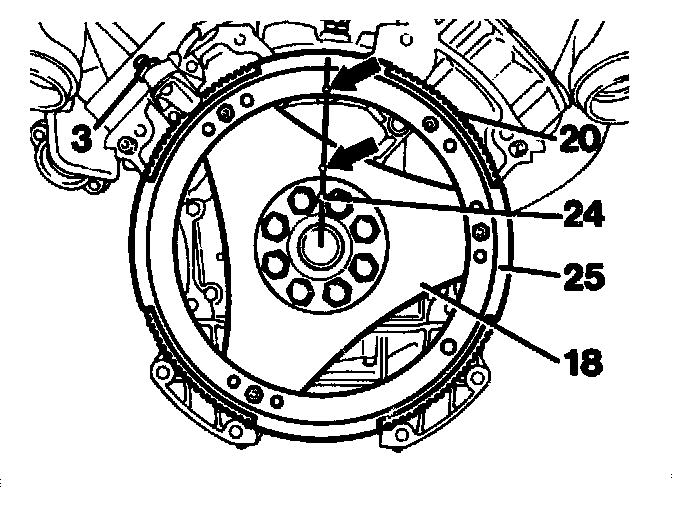

Flex Plate/Ring Gear Alignment
NOTE: The ring gear must be installed so that the 3.5 mm dia, holes (arrows) in the ring gear and in the driven plates are at the same angle otherwise proper operation of the ignition is not assured.
NOTE: The ring gear must be installed so that the 3.5 mm dia, holes (arrows) in the ring gear and in the driven plates are at the same angle otherwise proper operation of the ignition is not assured.
