Replacement of Radial Ball Bearing

Replacement of radial ball bearing

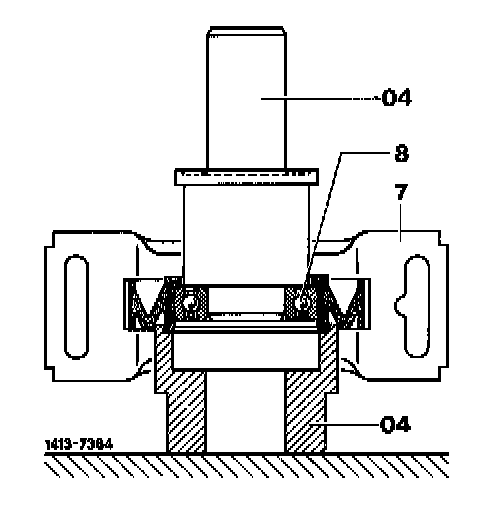

10 Press radial ball bearing (8) out of rubber mount (7) with remover and installer (04).

11 Check rubber mount and radial ball bearing for damage and replace, if required.

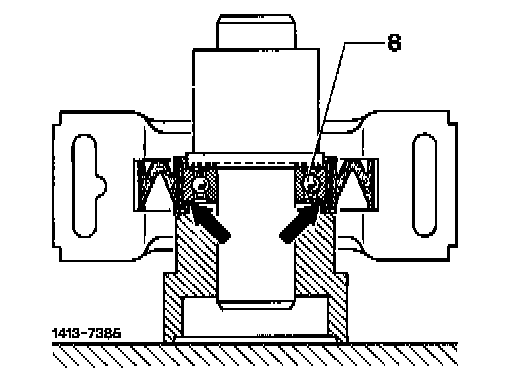

12 Slowly press radial ball bearing (8) in rubberized bearing seat up to contact surface (arrows).


Attention! Watch out for good seat of radial ball bearing.
