A/T - Valve Body Identification
1994Technical Bulletin # 218
^ Transmission: 722.0, 1 722.3, 4 &
^ Subject: Valve body Identification
^ Application: Mercedes
Mercedes
Valve body Identification
Mercedes valve bodies have a part number that is ink stamped on it for identification purposes.
The chart list the valve bodies used from 1974-1990. This list does not cover "grey market" cars.

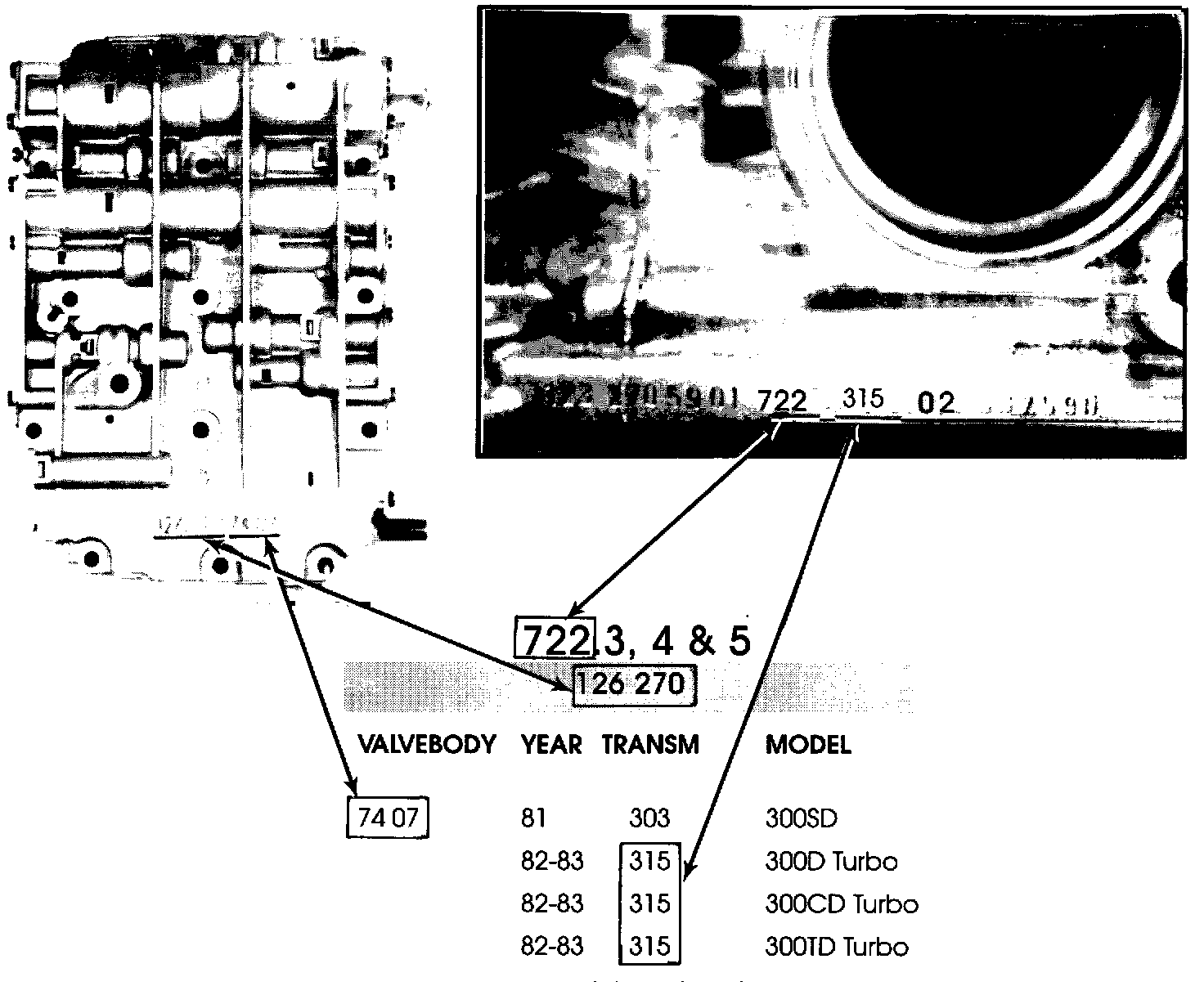

Example of how to use the chart:
NOTE:
Some early units (74-80) do not have a model number stamped on the case. In that event you will need to rely on the year and model of the car.
722.0 & 1 TRANSMISSIONS

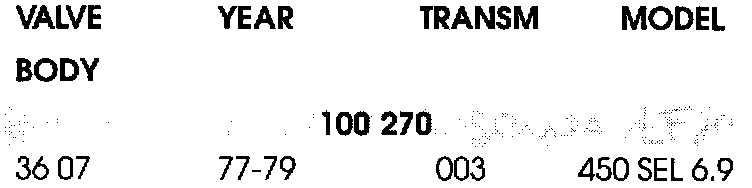

100 270 Series

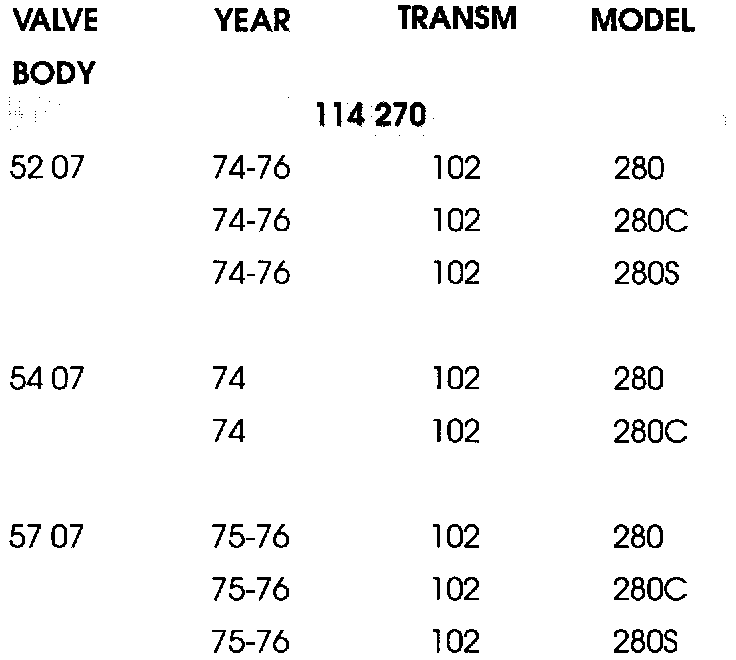

114 270 Series

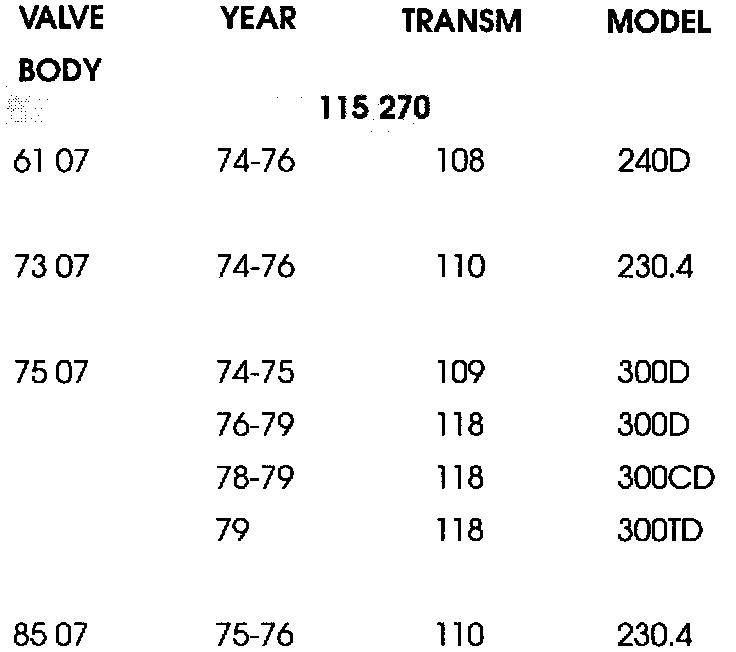

115 270 Series

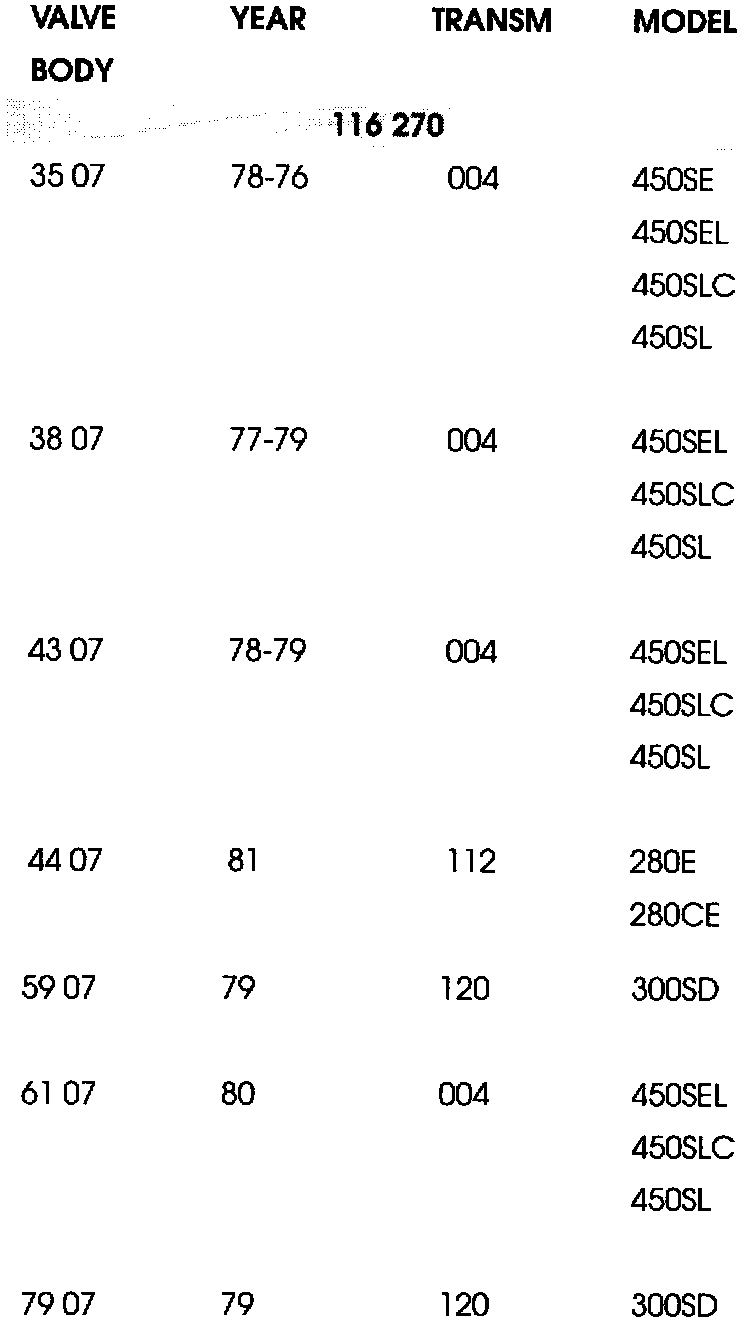

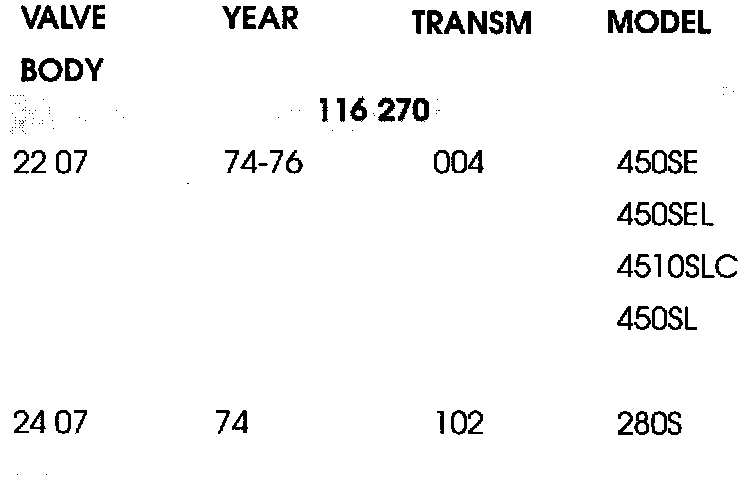

116 270 Series

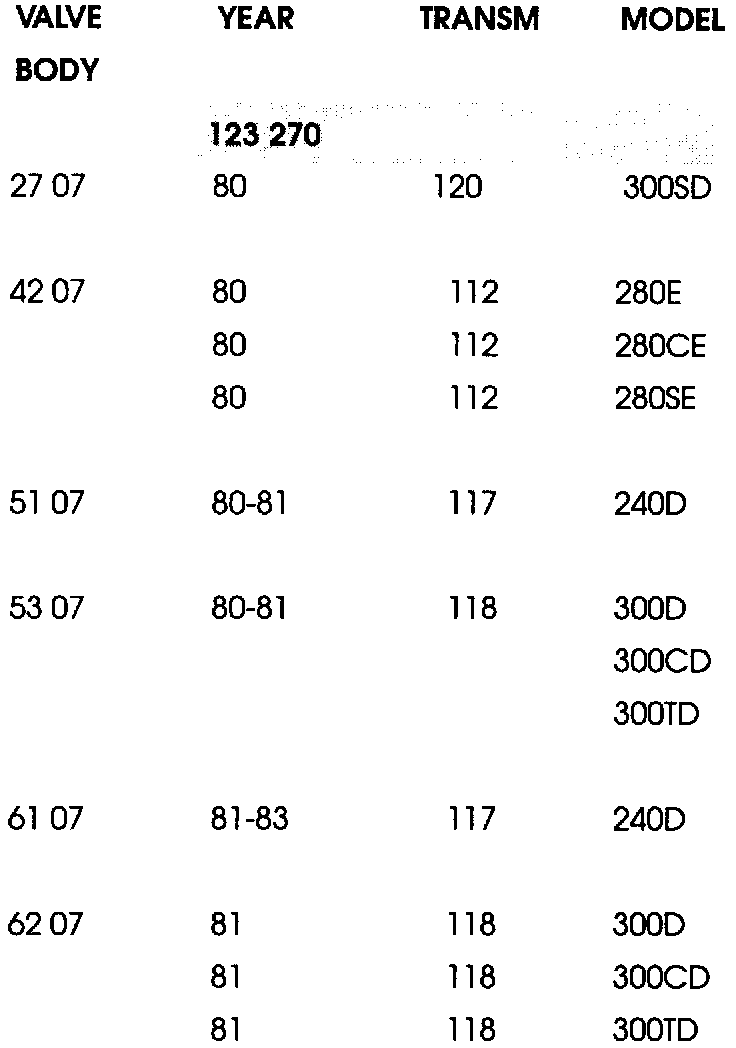

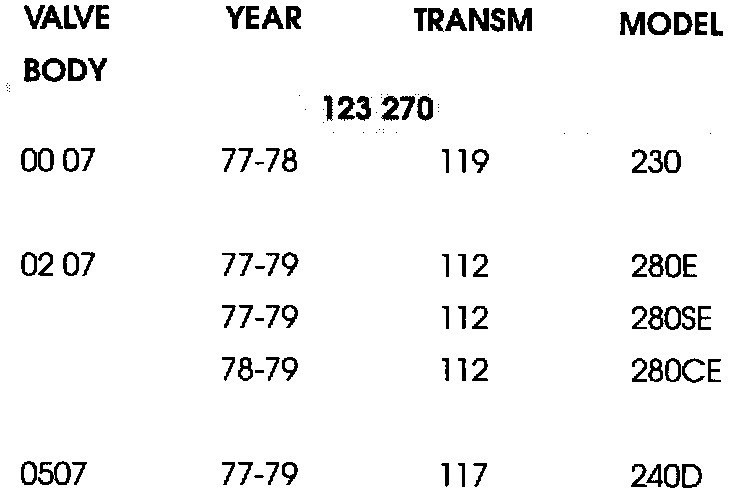

123 270 Series
722.3, 4 & 5 TRANSMISSIONS

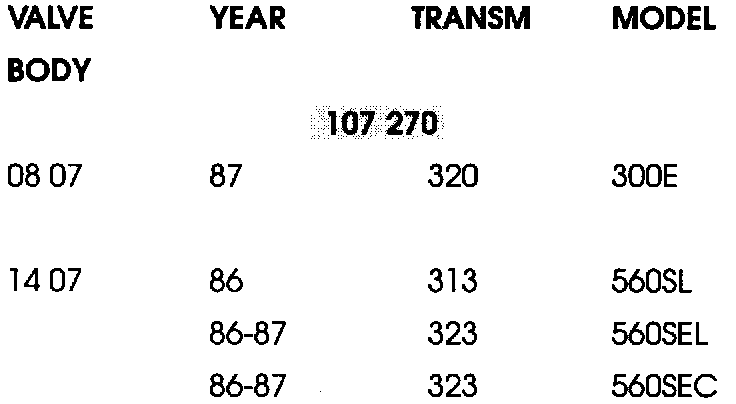

107 270 Series

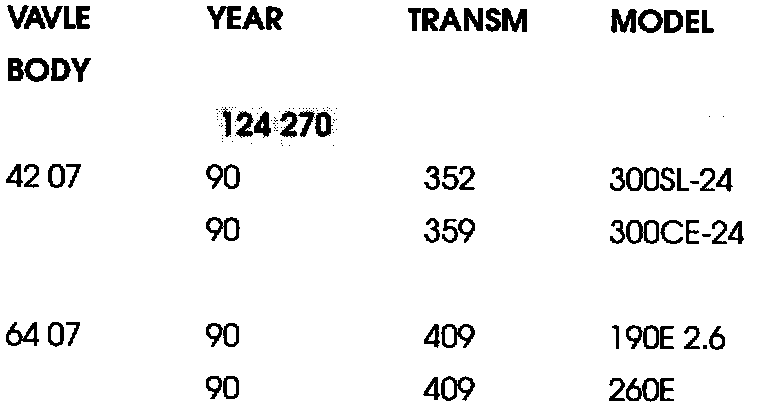

124 270 Series

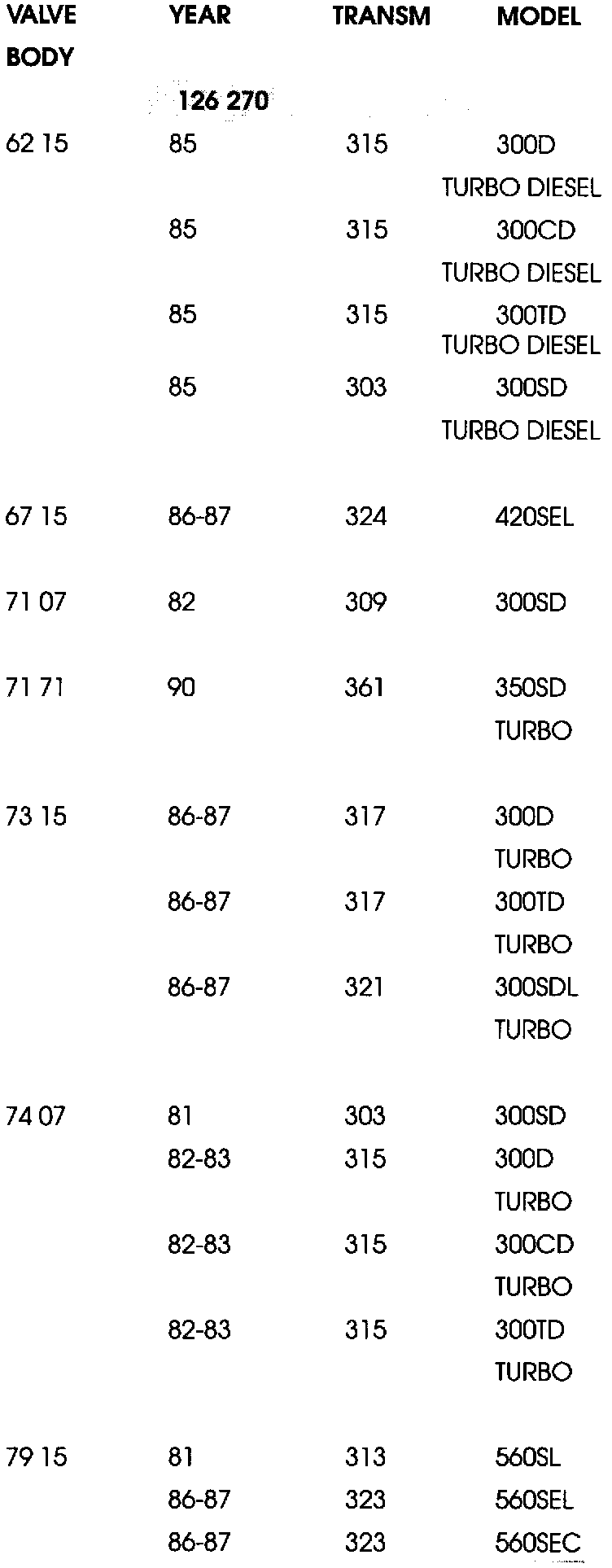

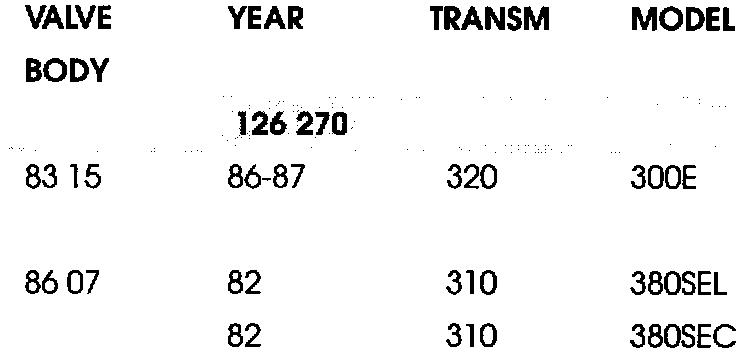

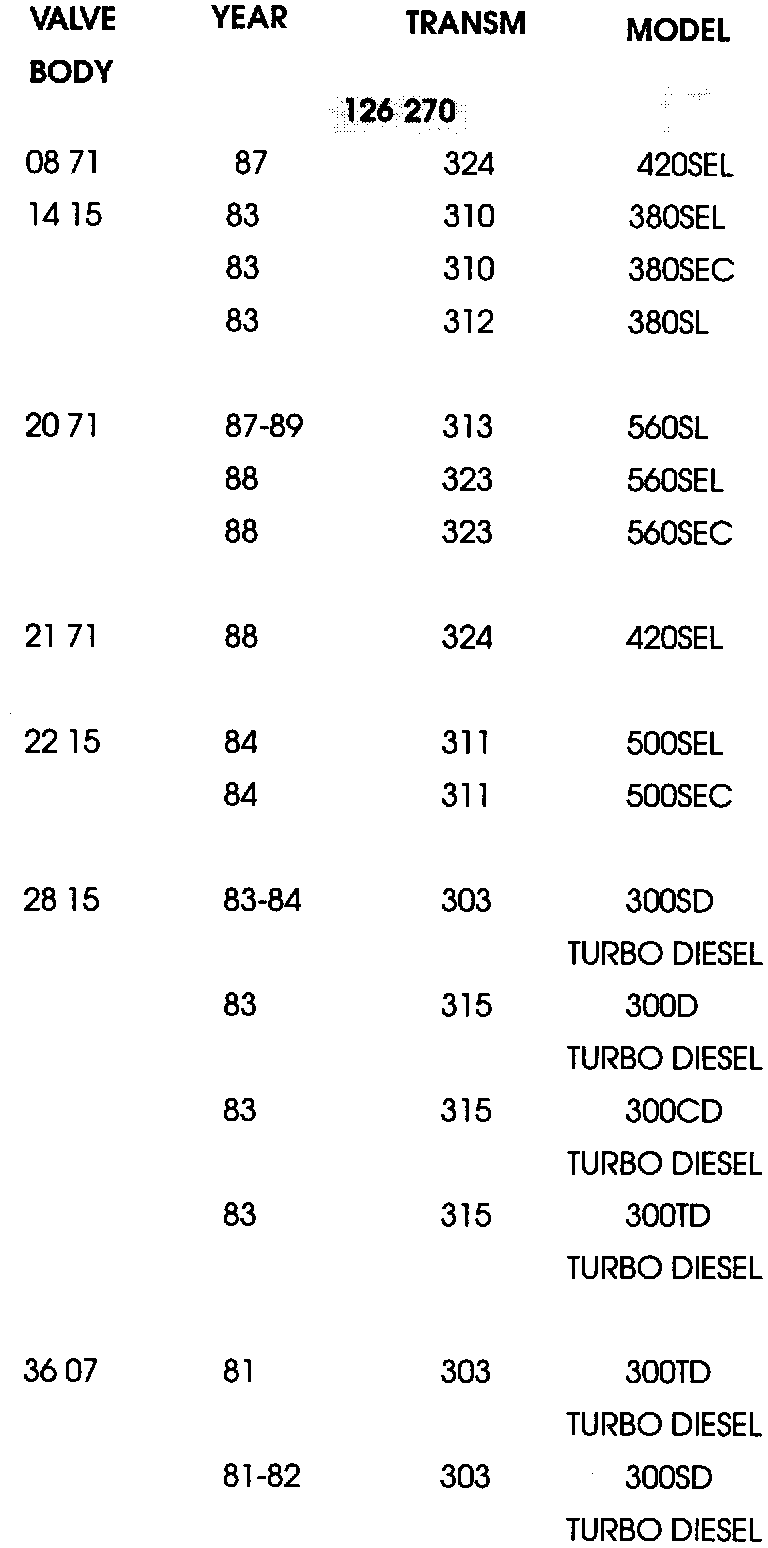

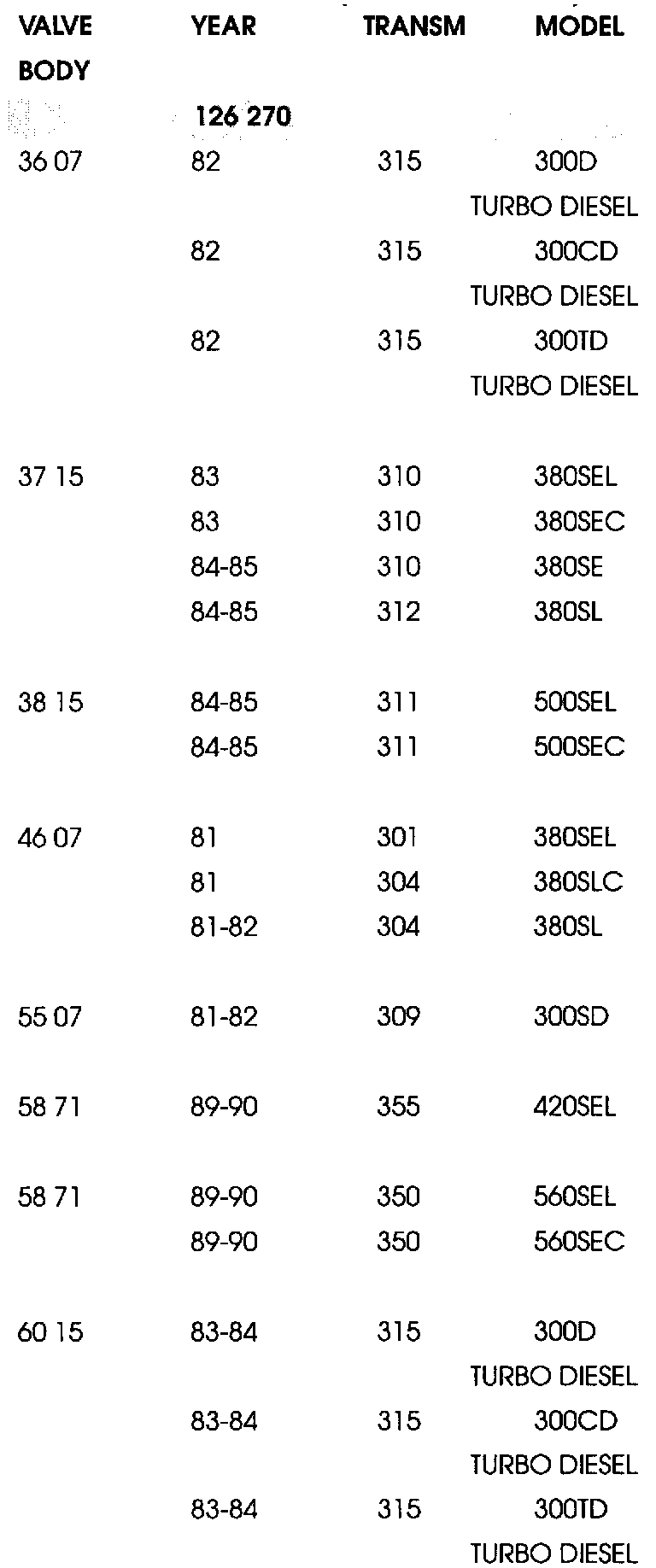

126 270 Series

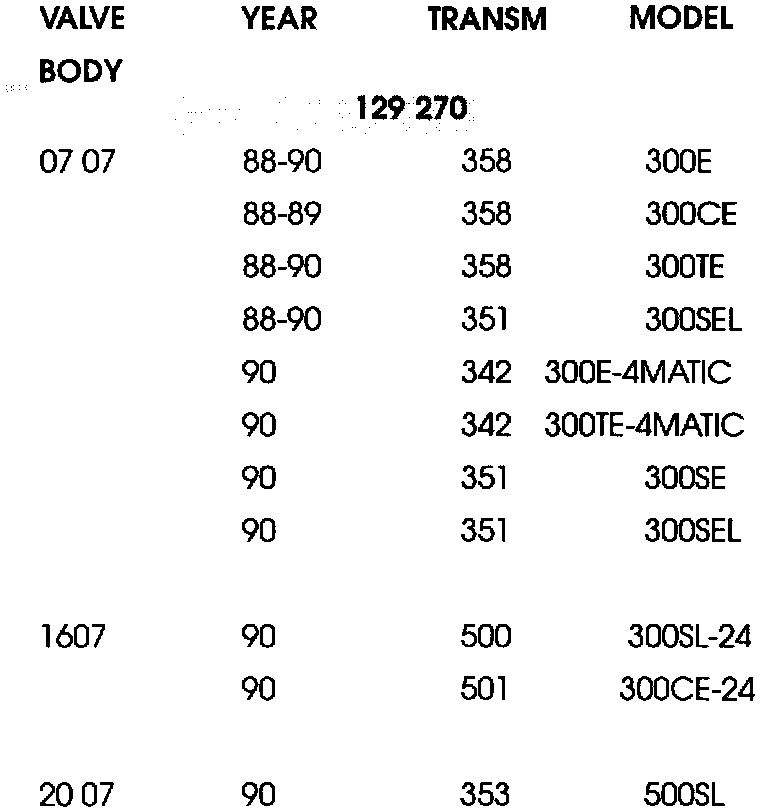

129 270 Series
201 270 Series
