Shift Modulator: Service and Repair

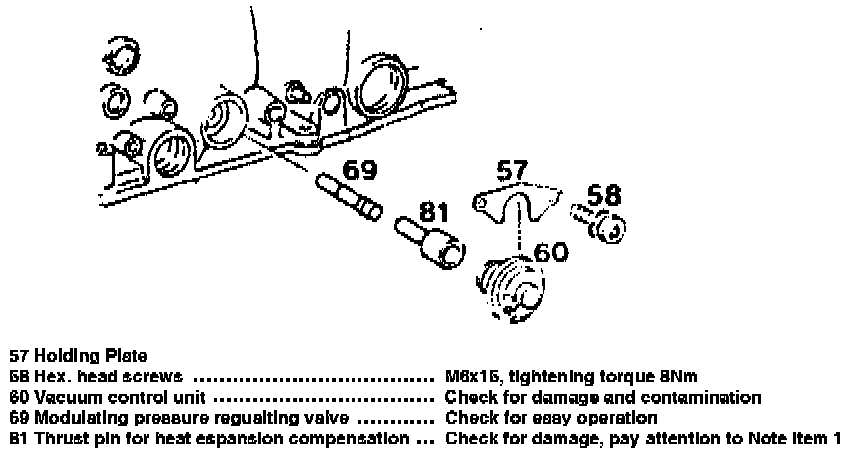

1 Remove, install vacuum control unit.

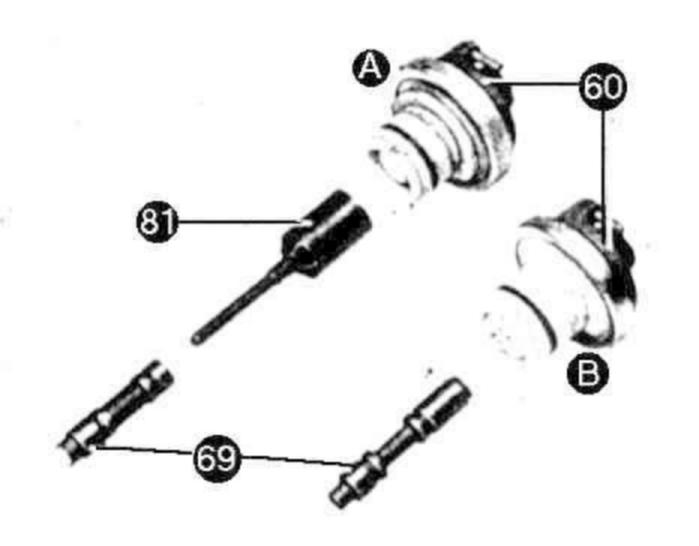

NOTE: The vacuum control unit version B has been installed up to February 1981. The vacuum control unit with thrust pin for heat expansion compensation version A is installed since February 1981. In the event of repairs, install version A. Test modulating pressure and adjust.
