Removal and Replacement
AR27.10-P-0500EV Remove/install transmission with torque converter
- Transmission 722.9
Component Identification:

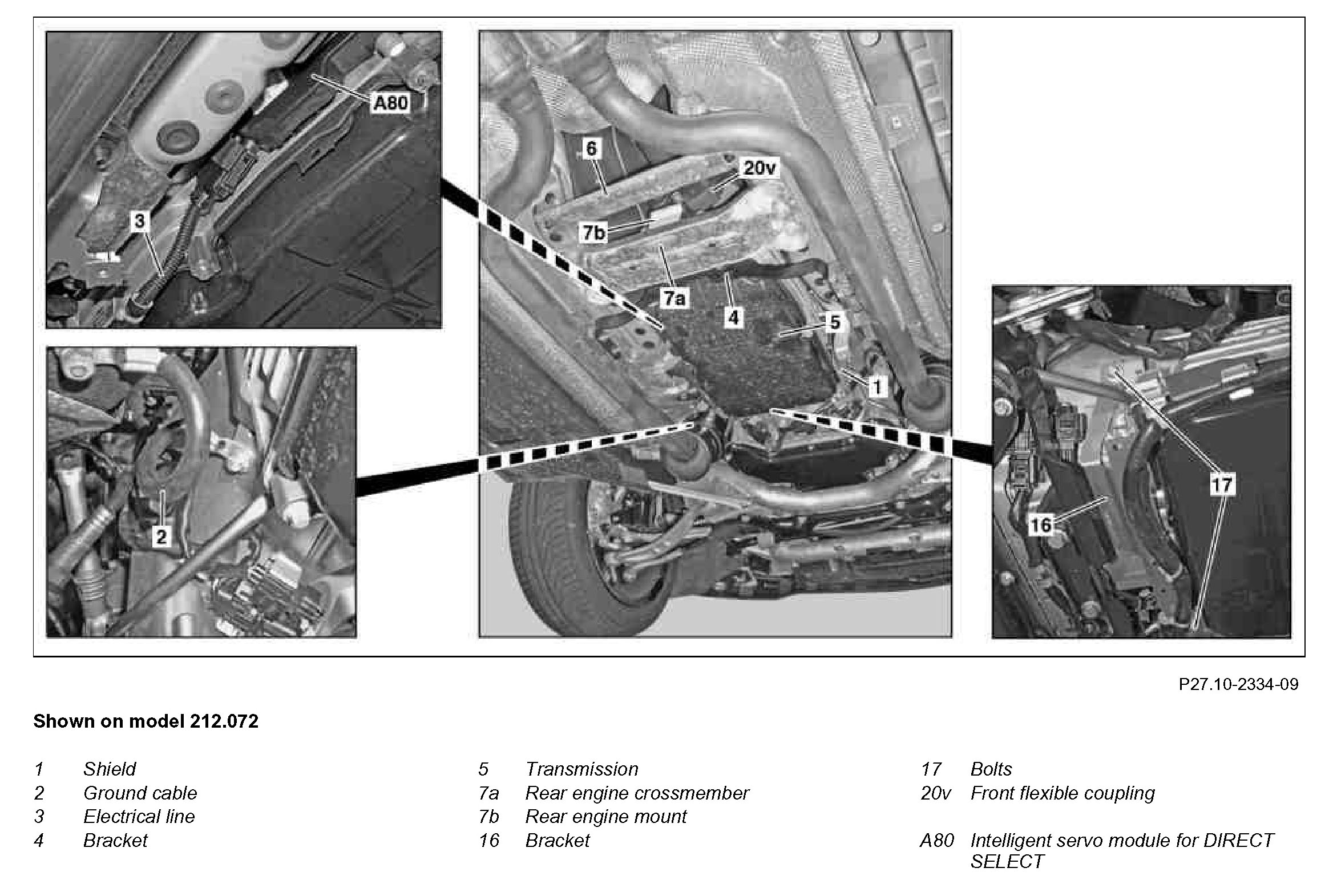

Shown on model 212.072
Component Identification:

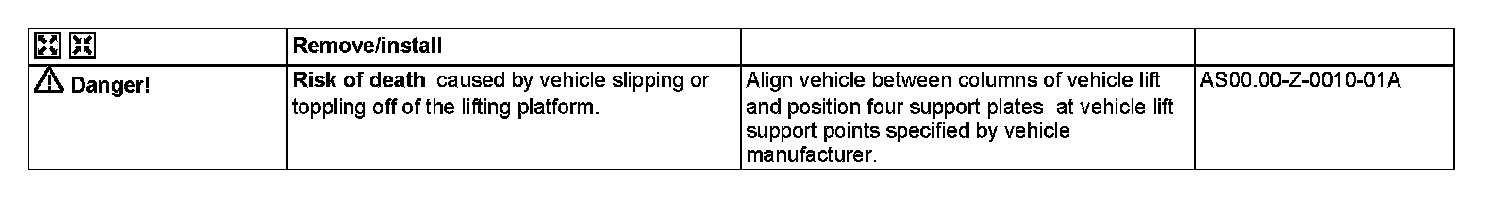

Remove/install:

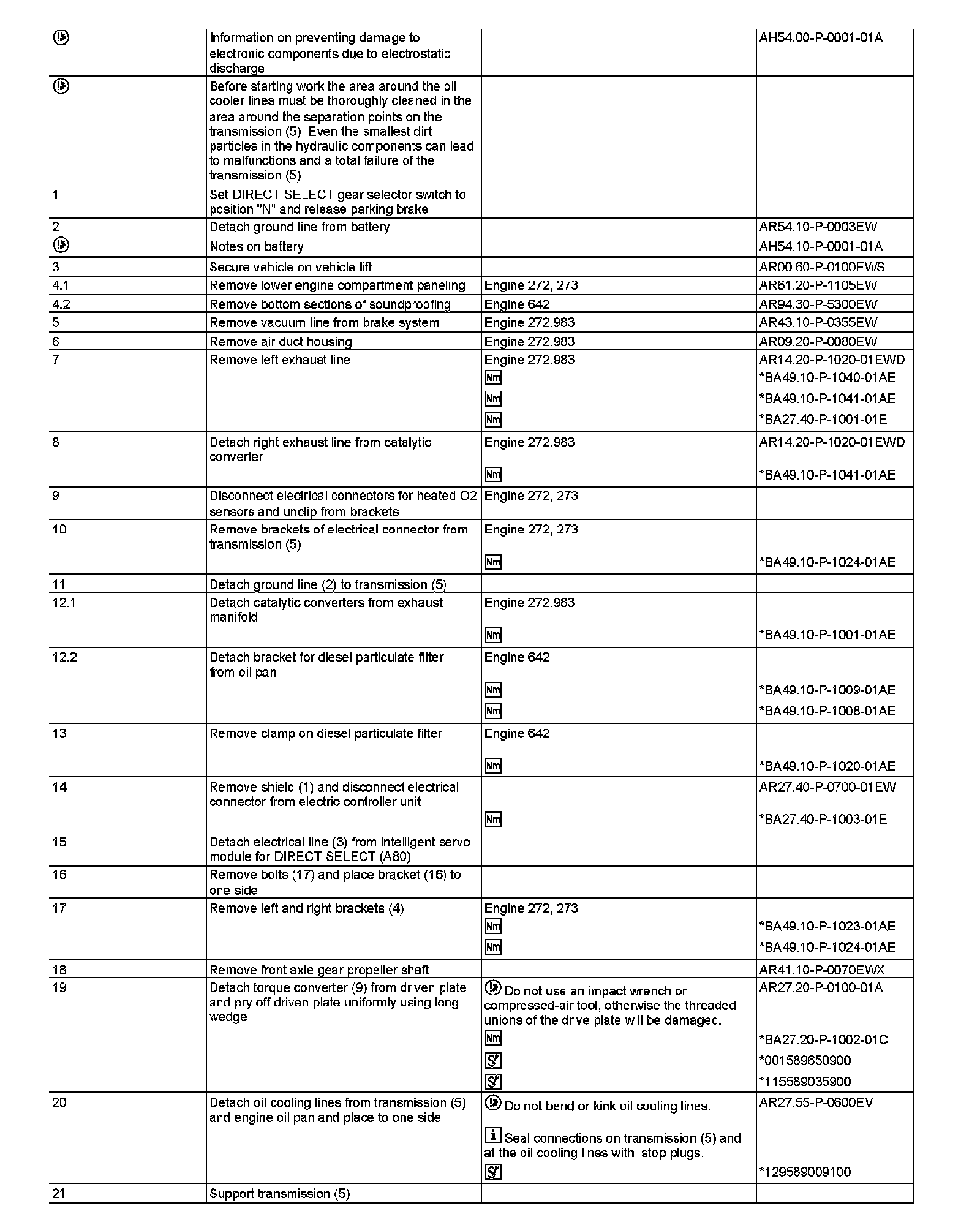

Steps 1-21:

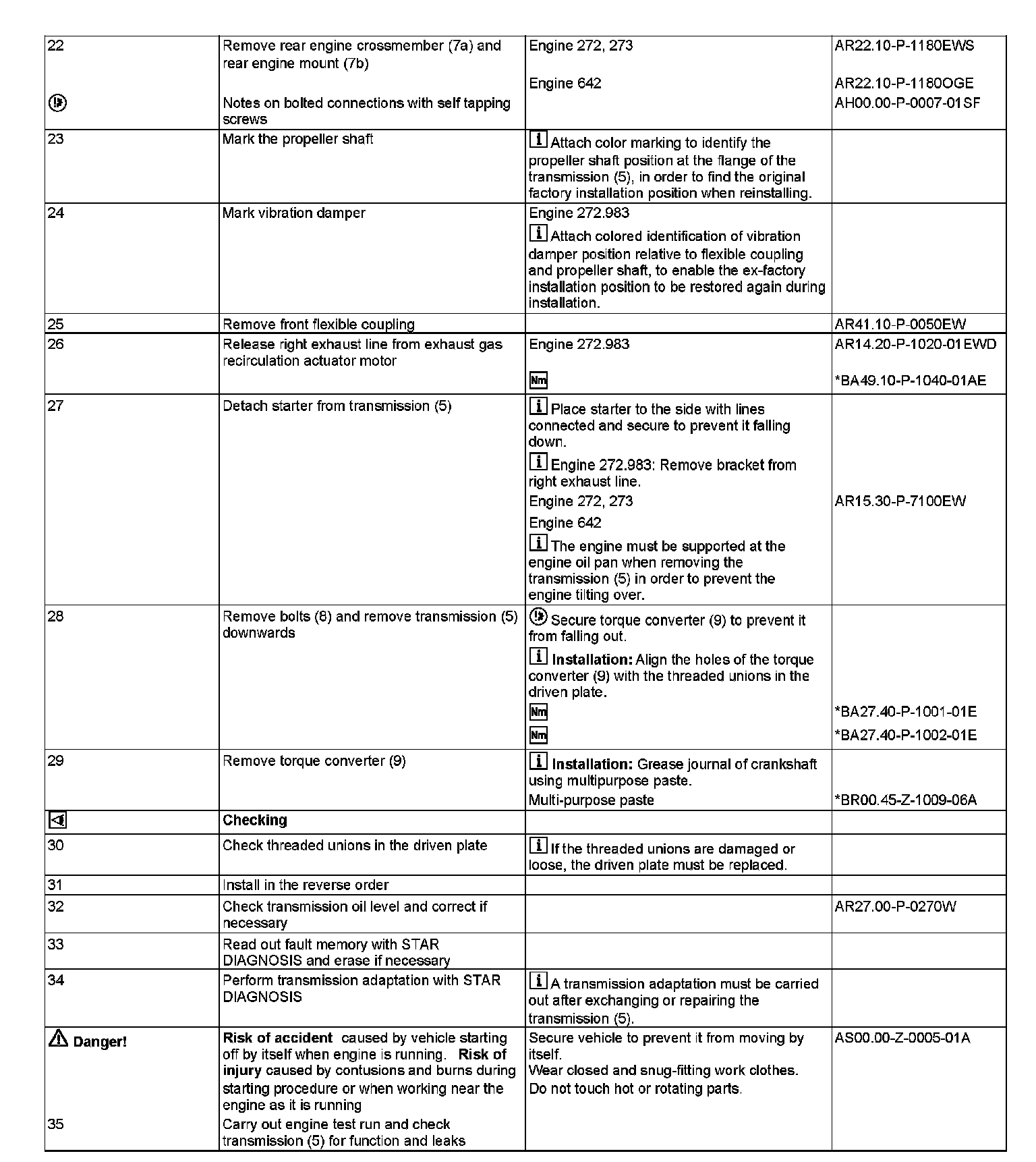

Steps 22-35:

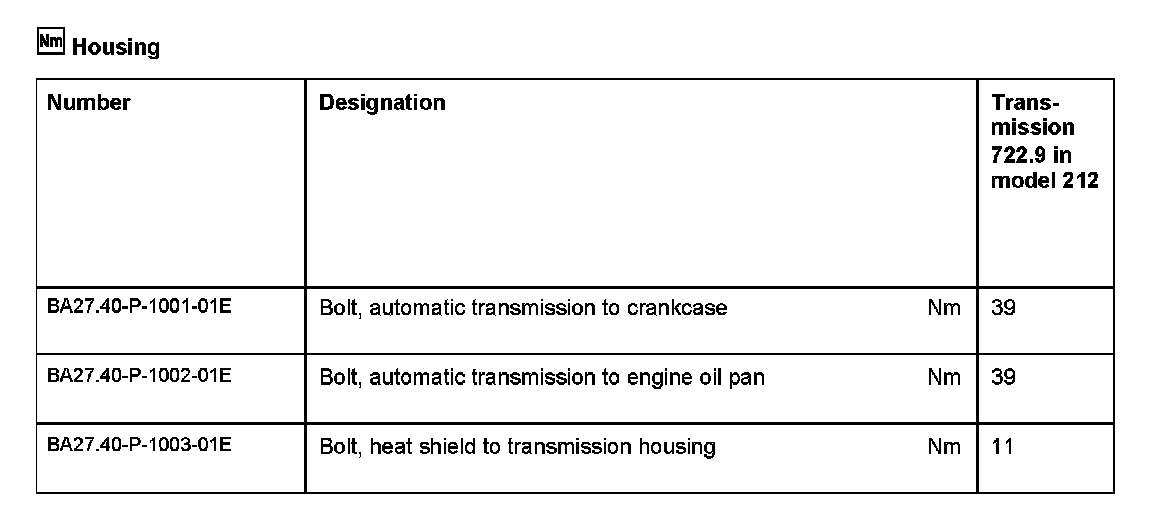

Housing:

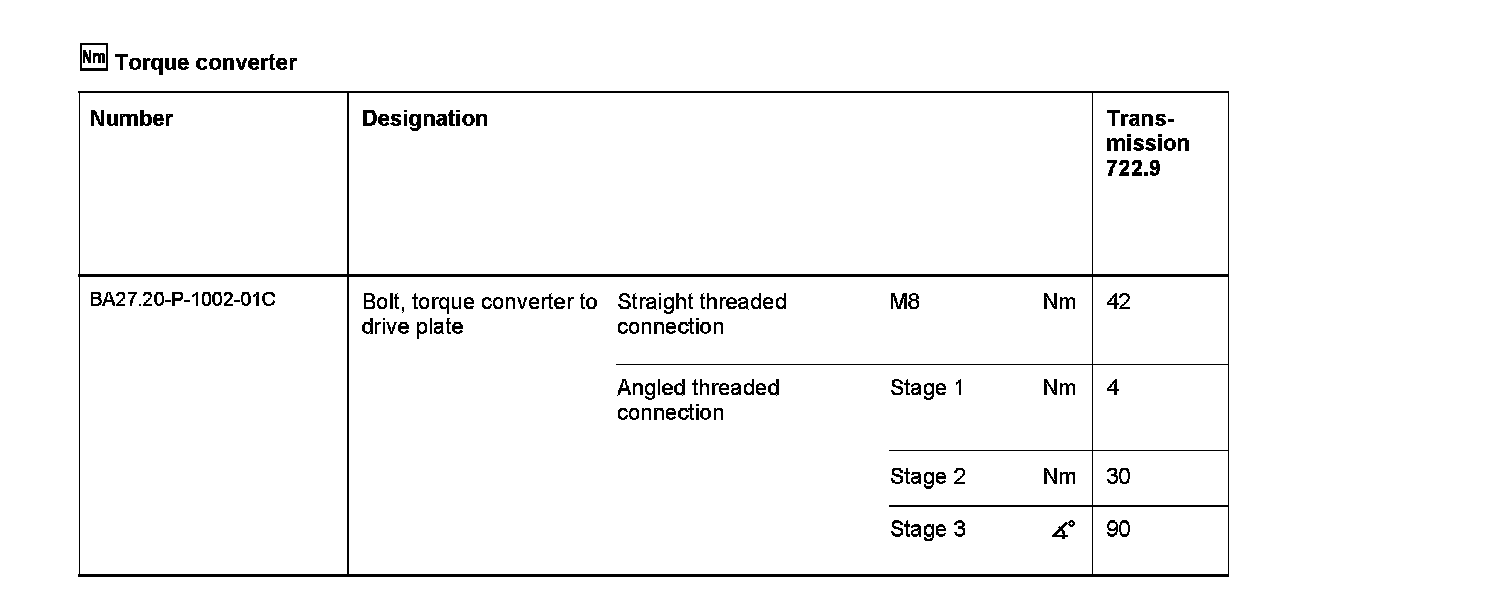

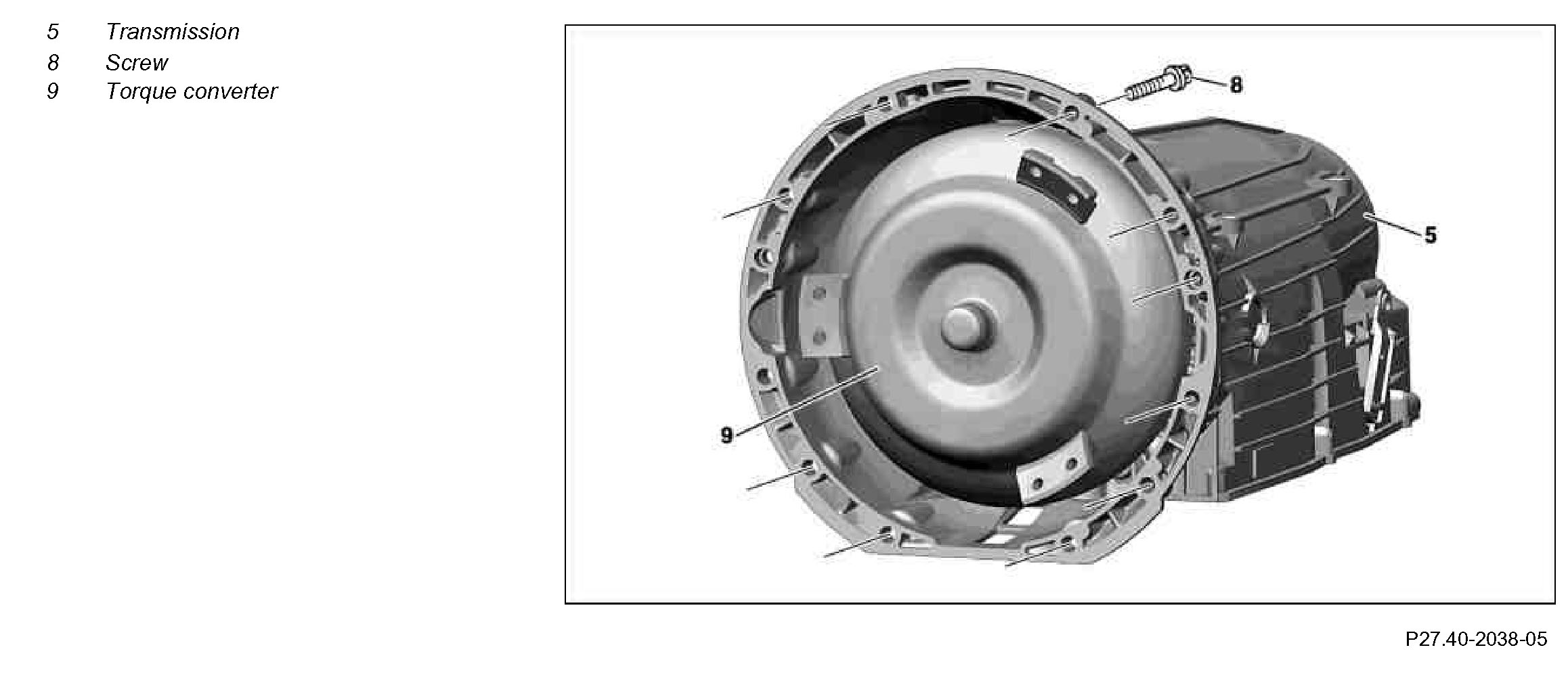

Torque converter:

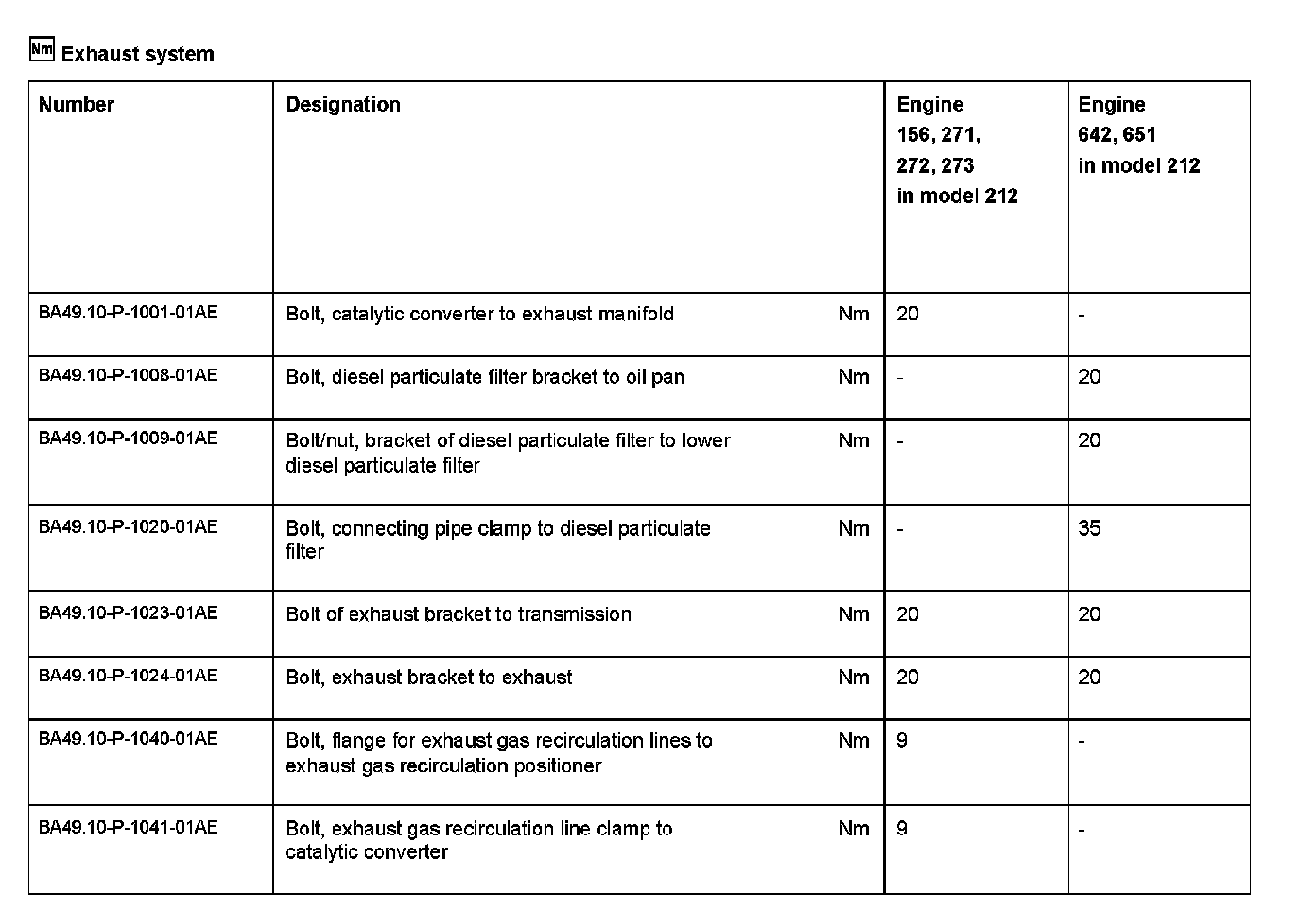

Exhaust system:

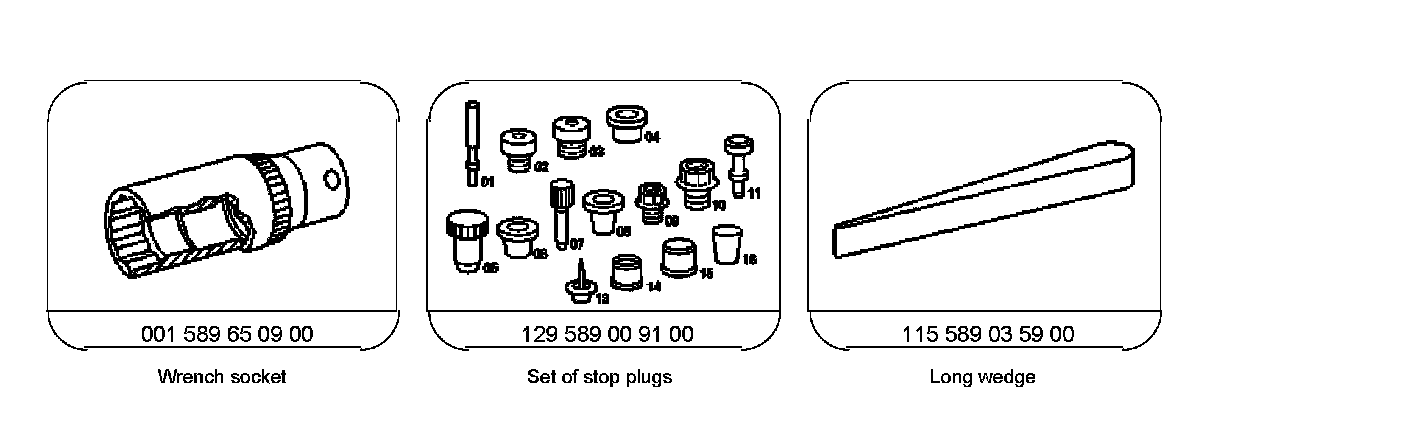

Special Tools:
Repair materials:
