Intermediate Plate: Application and ID

Survey Large Intermediate Plate

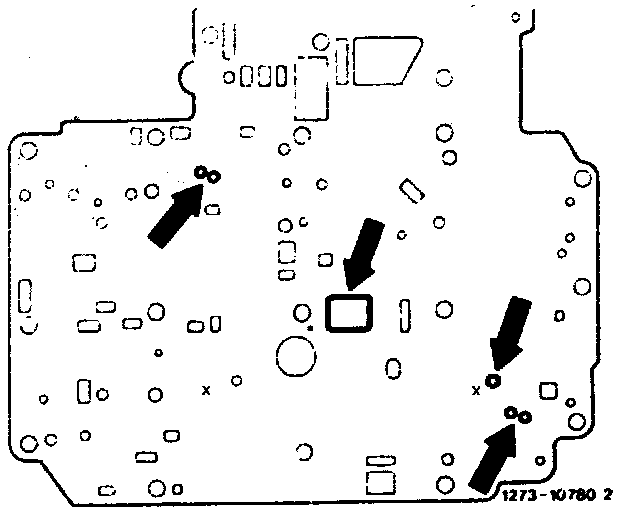

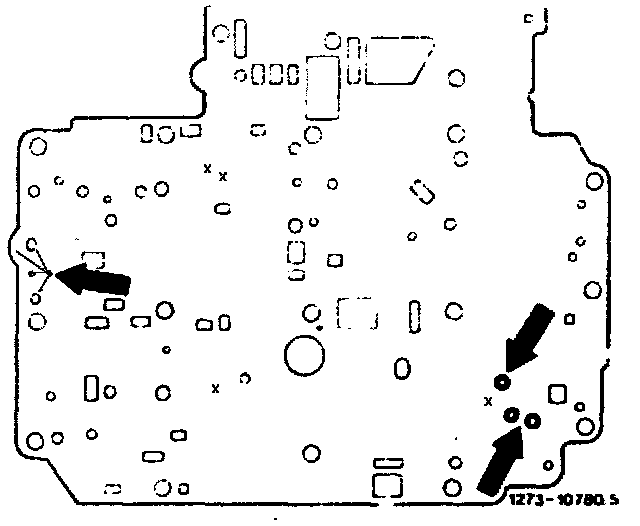

The following arrangement is intended to serve as an identification aid. The intermediate plates have different hole patterns (arrows). The crosses are marking the points where no holes should be located.

Intermediate plate for transmission with shift valve housing 1st version (prior to energy concept) and repair version.

Valid gasket 126 277 02 80

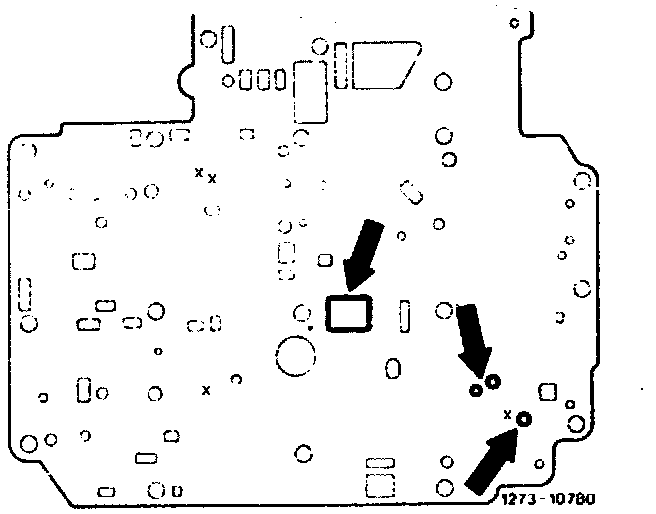

Installed up to transmission end No. 18937 without temperature throttle(1)

(1)126 277 07 14

Valid gasket 126277 02 80

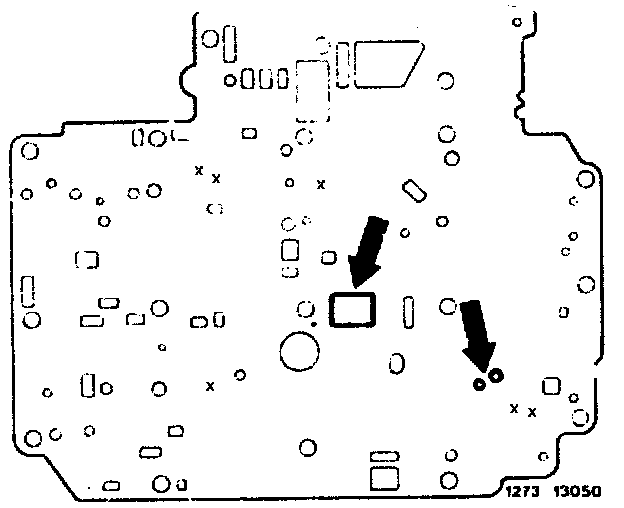

Installed starting transmission end No. 18938 with temperature throttle. white(2)

(2)126 277 23 14

Valid gasket 126 277 02 80

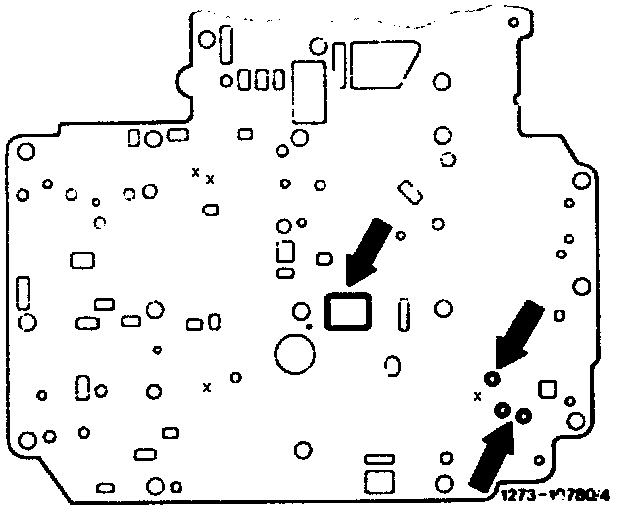

Installed in combination with shift valve housing repair version(3)

(3)126 277 38 14

Intermediate plate for transmission with shift valve housing 2nd version (starting energy concept 9.1981 or 1.1982).

Valid gasket 126 277 02 80

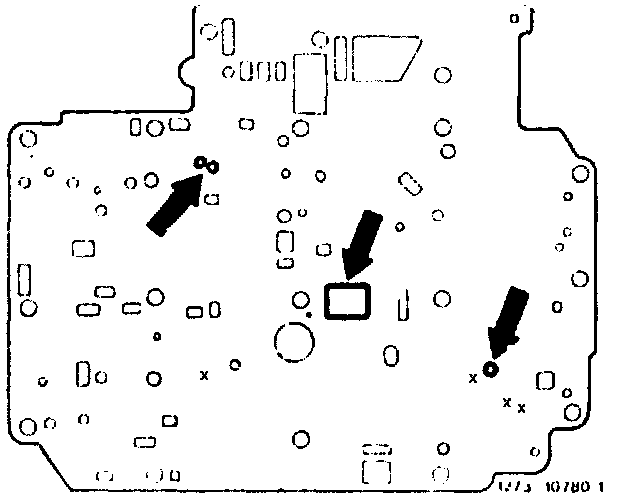

Installed in transmission without position "B"(1)

(1)126 277 32 14 (steel)
(1)126 277 39 14 (aluminum)

Valid gasket 126 277 05 80 (air pocket)

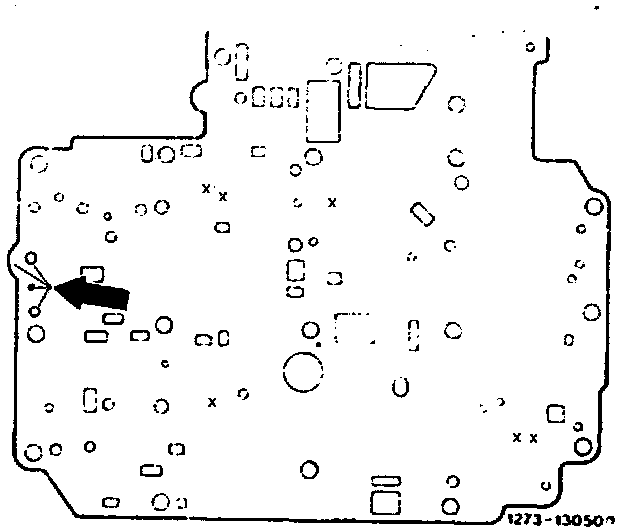

Installed in transmission without position "B"(2)

NOTE: If gasket 126 277 05 80 is not available, gasket 126 277 02 80 may be used.

(2)126 277 76 14

Valid gasket 126 277 05 80

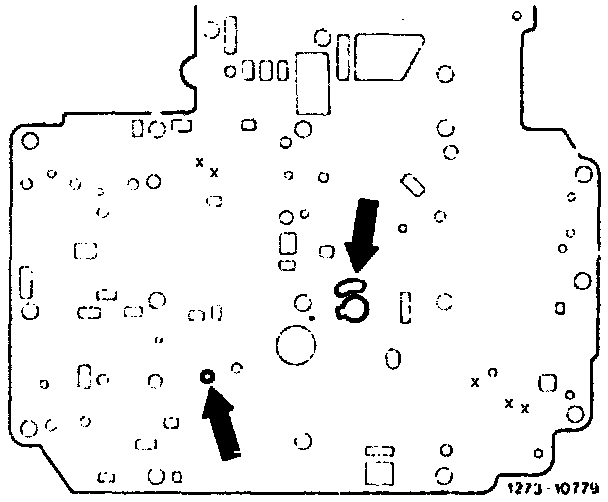

Installed in transmission with position "B"(3)

NOTE: If gasket 126 277 05 80 is not available, gasket 126 277 02 80 may be used.

(3)126 277 33 14 (steel)
(3)126 277 40 14 (aluminum)

Valid gasket 126 277 05 80





Installed in transmission with position "B"(4)

(4)126 277 89 14

Valid gasket 126 277 07 80





Installed starting transmission end No. 741 819 and replacement for 126 277 05 80

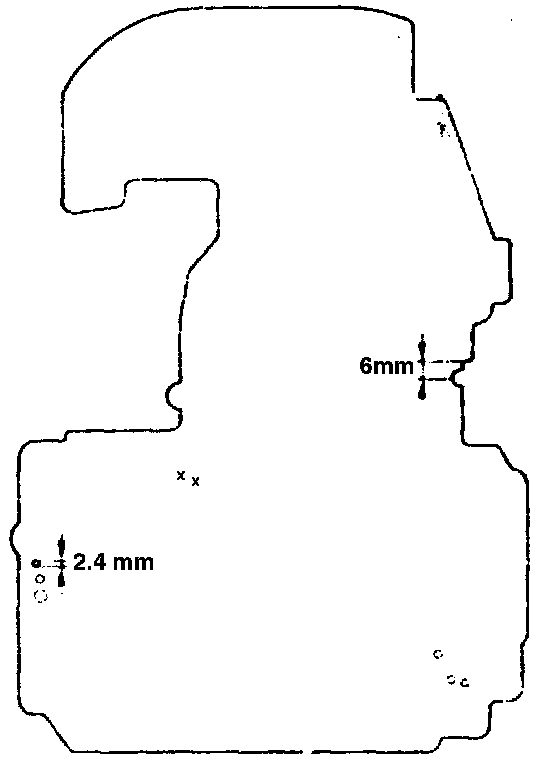

Installed in transmission without position "B"(1) starting transmission end No. 754 609 and replacement for 126 277 76 14

(1)126 277 96 14

Valid gasket 126 277 07 80

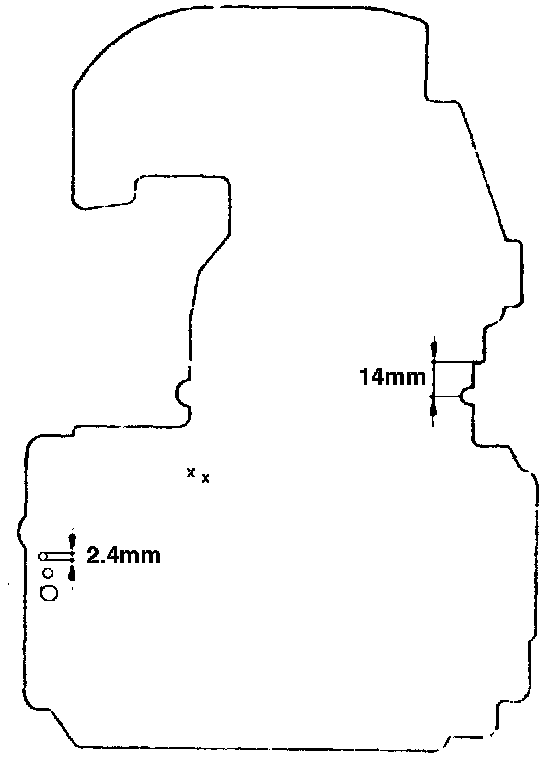

Installed in transmission with position "B"(2) starting transmission end No. 743 450 and replacement for 126 277 89 14

(2)126 277 94 14

Valid gasket 126 277 07 80 or 126 277 10 80





Installed in transmission with spring retainer (LB3)

Vehicles with 6-cylinder engine (Australia,Japan,USA) 1988

126 277 12 15

Valid gasket 126 277 09 80 or 126 277 11 80 with engine 117

Valid gasket 127 277 07 80 or 126 277 10 80 with engine 116





Installed in transmission with spring retainer (LB3)

Vehicles with 8-cylinder engine (Australia,Japan,USA) 1988

126 277 08 15
