AR00.19-P-0120-24A Remove Contacts From Siemens ELO Connector

AR00.19-P-0120-24A Remove Contacts From Siemens ELO Connector


220 589 04 99 00, New passenger vehicle wiring harness repair kit







000 589 13 99 00, Wiring harness repair kit, basic







220 589 01 99 50, Blade holder with clamping pliers







220 589 01 99 60, MQS blade







Secondary release on version with "Siemens ELO" securing clip (shown on 10-pin "Siemens ELO" connector)

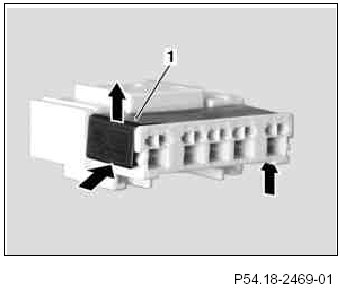

1 Using a suitable tool, pry up the side tabs of the retaining clamp (1).
2 Move the tabs.
3 Remove securing clip (1).







Unpin contact pins from "Siemens ELO" connector (shown on 10-pin "Siemens ELO" connector)

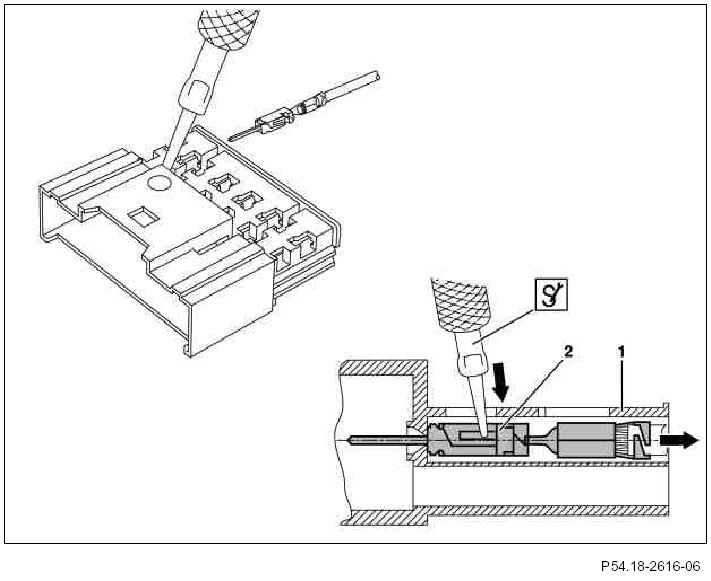

4 Attach blade holder with clamping pliers and MQS blade at side of spring shackle of contact pin (2).
5 Press down the spring shackle of the contact pin (2) and push the contact pin (2) out of the contact cavity of the connector housing (1). Tug the corresponding cable at the same time to assist the unpinning procedure.
