AR00.19-P-0120-14A Remove Contacts From Maxi Power Timer Coupling

AR00.19-P-0120-14A Remove Contacts From Maxi Power Timer Coupling


220 589 04 99 00, New passenger vehicle wiring harness repair kit







000 589 13 99 00, Wiring harness repair kit, basic







220 589 01 99 50, Blade holder with clamping pliers







220 589 01 99 51, MPT blade







Unfasten secondary release on version with retaining cap (shown on Maxi Power Timer, Junior Power Timer coupling)

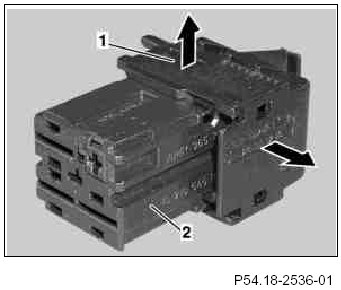

1 Using a suitable tool, pry up the lock tabs on the retaining cap (1).
2 Pull the retaining cap from the clutch housing (2).







Unpin female contacts from coupling

3 Insert blade holder with clamping pliers and MPT blade from front side though openings at contact cavity of coupling (1).
This step compresses the spring shackles (2) on the female contact.
4 A slight tug on the corresponding cable will remove the female contact (1) from the coupling.
