BE54.10-P-1000-01A Test Values For Battery, Voltage Supply



BE54.10-P-1000-01A Test Values For Battery, Voltage Supply


Modification Notes:

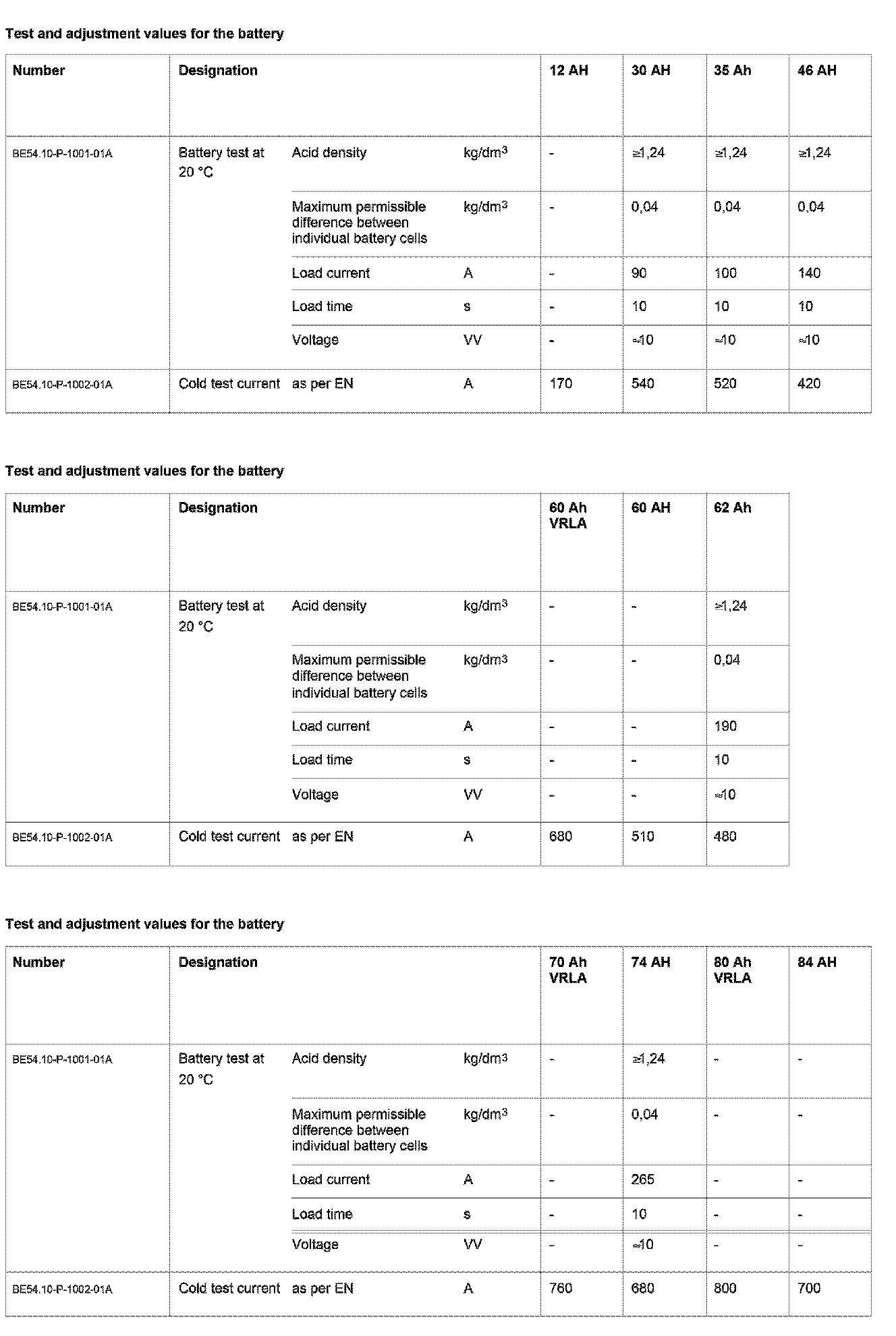

Test And Adjustment Values For The Battery:

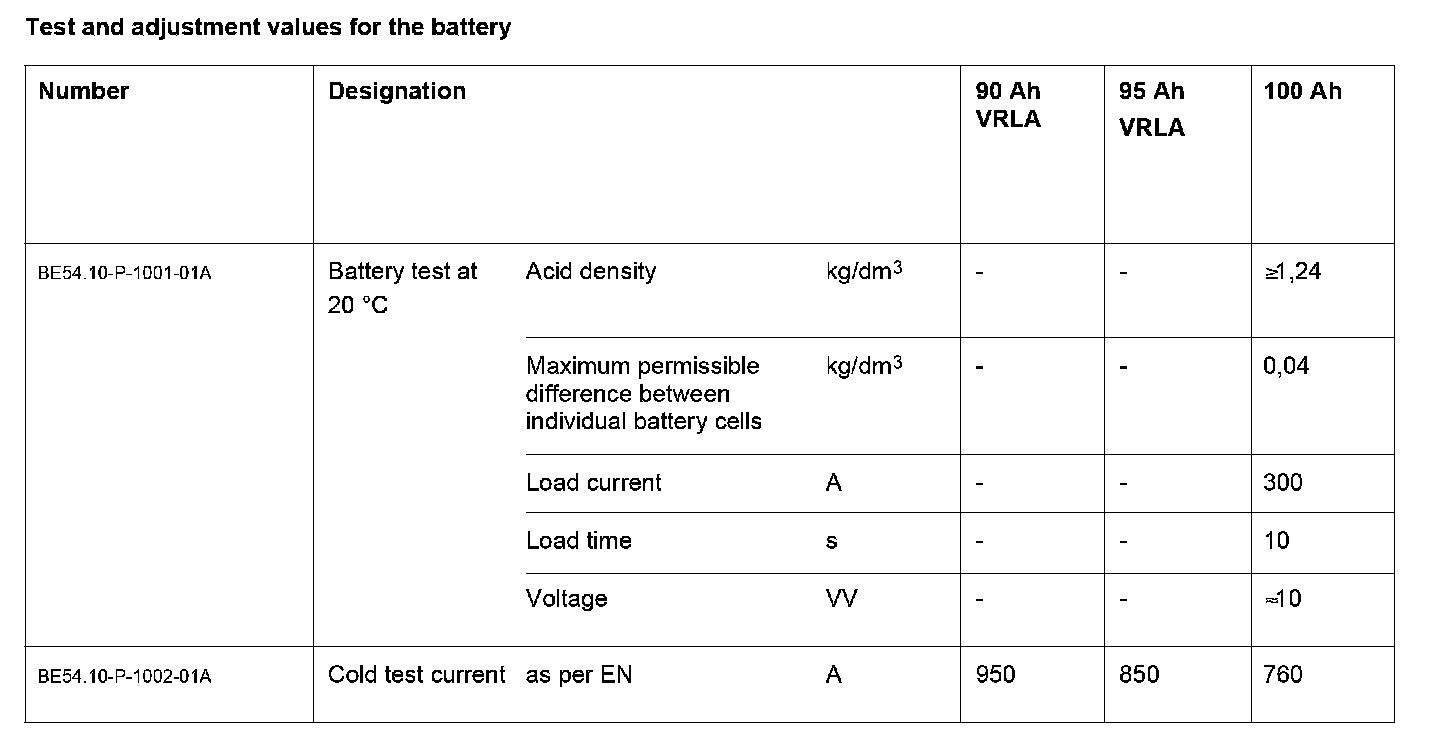

Test And Adjustment Values For The Battery:
