Fuel Pump Delivery Test
Test Values- Voltage at fuel pump, minimum - 11.5 Volts
- Delivery capacity, minimum - 1 liter/40 Sec
- Current draw of fuel pump - approx. 7.5 Amp
Special Tools
Clamp for hose lines - PN 000 589 403 700:
Conventional Tools
^ Digital multimeter - e.g. Sun Electric DMM-5
^ Measuring Glass (1 liter minimum)
^ Stop watch
Self-Made Tools
Contact bridge:
Materials :
^ 2.5 mm2 (12 AWG) electrical wire
^ 2 Single pole plugs
^ Part No. 004 545 84 28
��tTest Procedure:

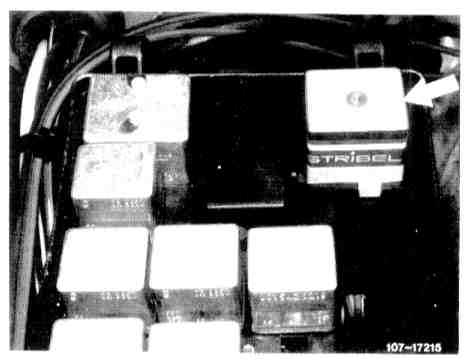

Fig. 1:
Fig. 2:
Fig. 3:
