Hydraulic Fluid - ASMT: Service and Repair

AR26.60-D-0009A Check and correct hydraulic oil level
- with TRANSMISSION 716.6 [MODEL 203,209.3/4]
- with TRANSMISSION 716.6 with CODE (424) Sequentronic automated manual transmission (SEQ) [MODEL 211.0]

Component Identification:

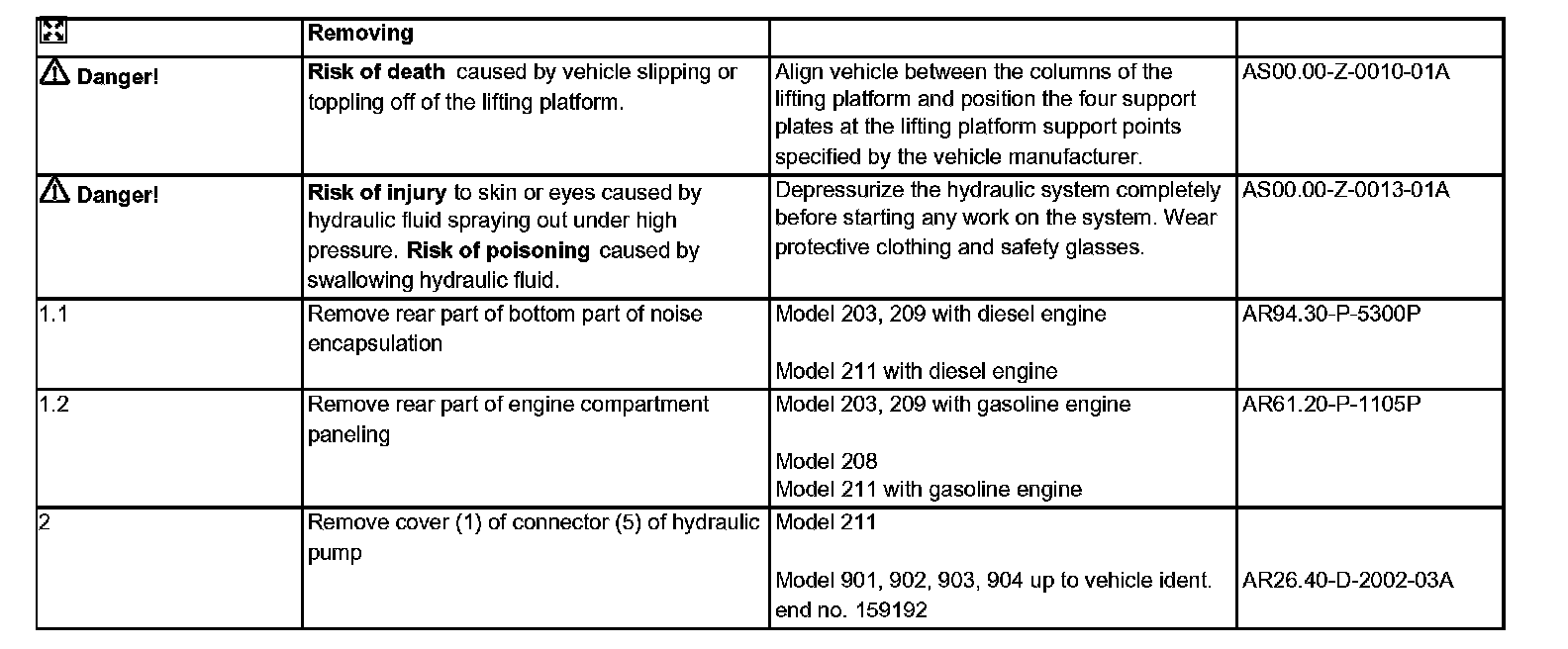

Steps 1.1-2:

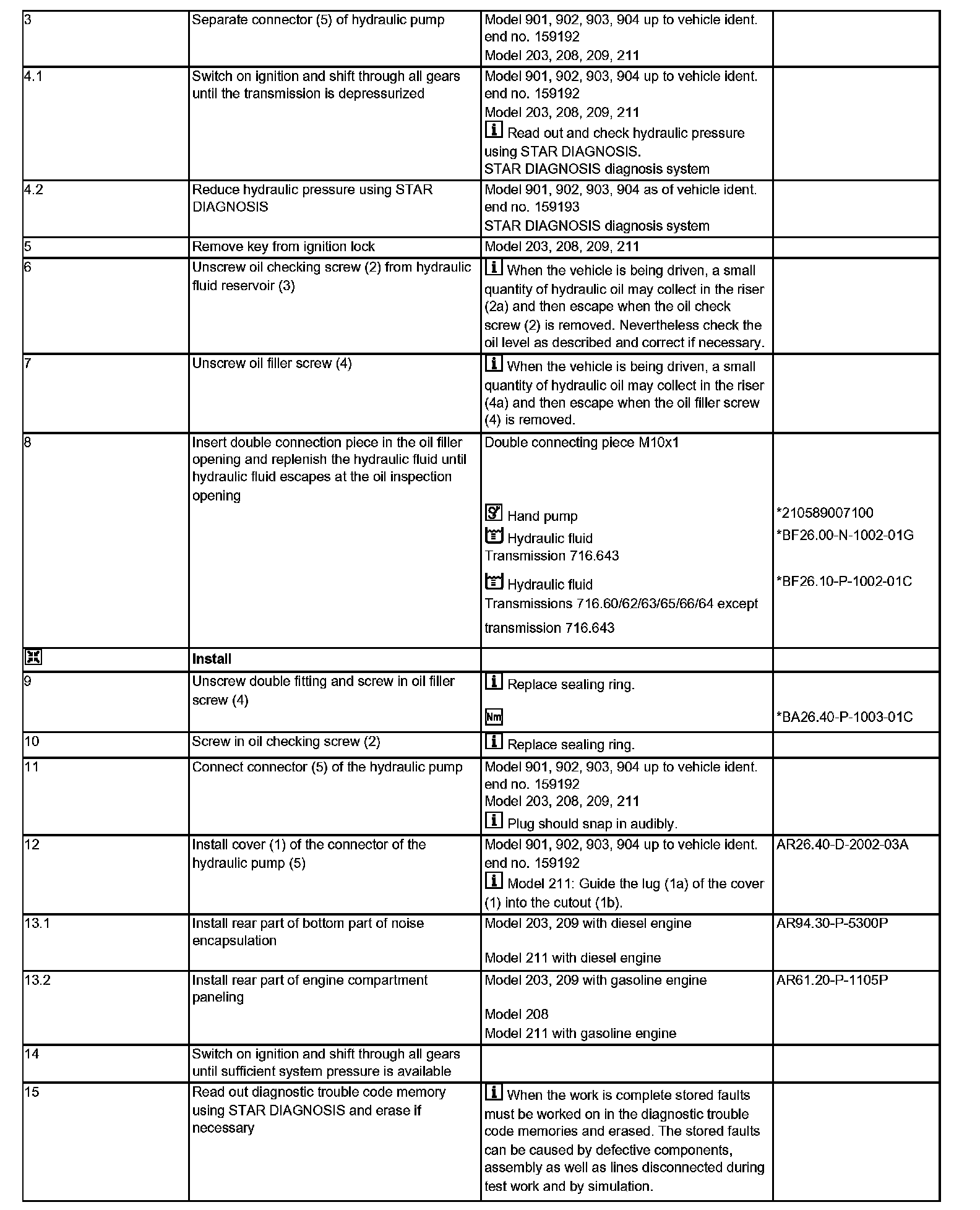

Steps 3-15:

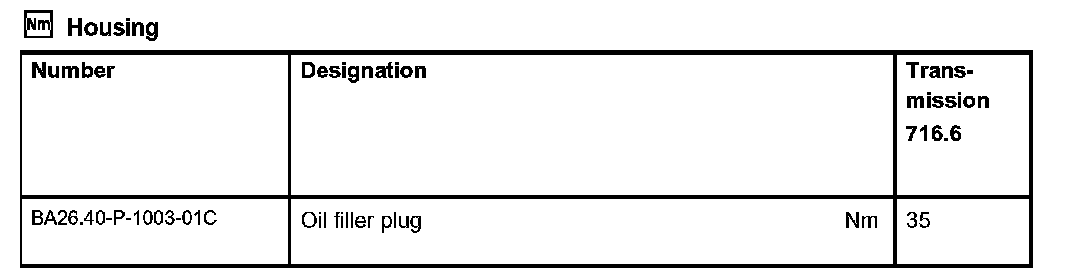

Housing:

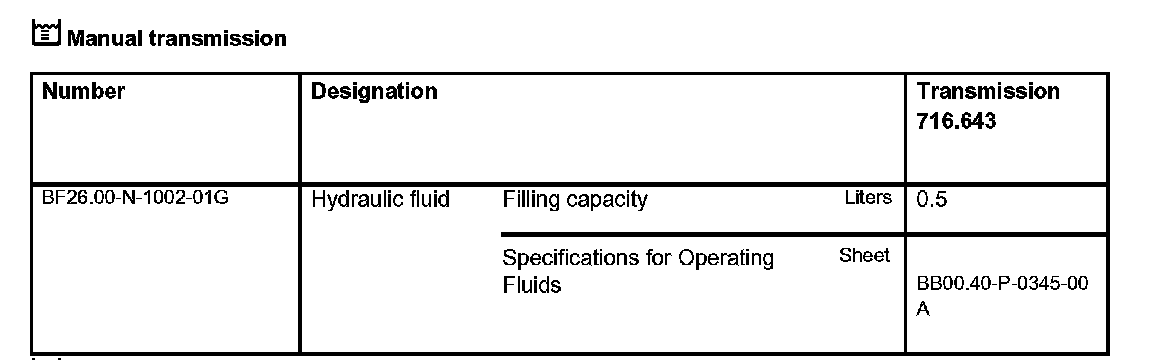

Manual transmission:

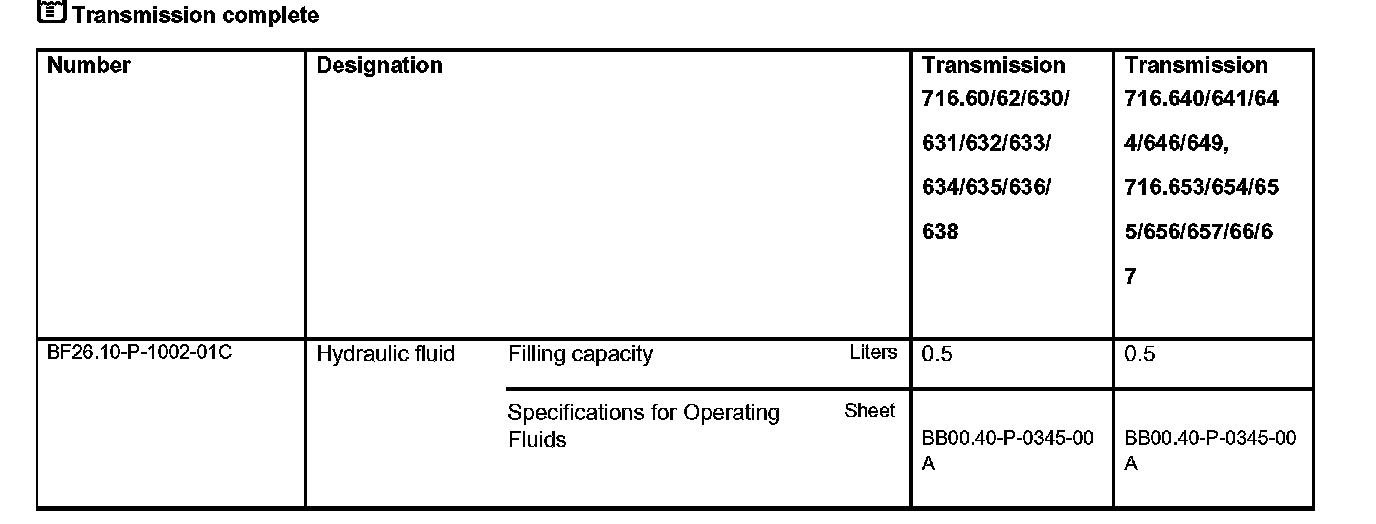

Transmission complete:

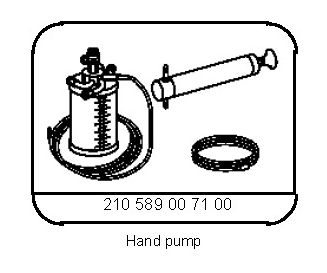

Special Tools:
