Temp, Fuel & Oil Gauges Replacement
Removal and installation of indicating instrumentsRemoval
1 Remove instrument cluster (54-250).
2 Remove tachometer (54-253).
Note: The indicating instruments for temperature, fuel and oil pressure can be exchanged complete only.

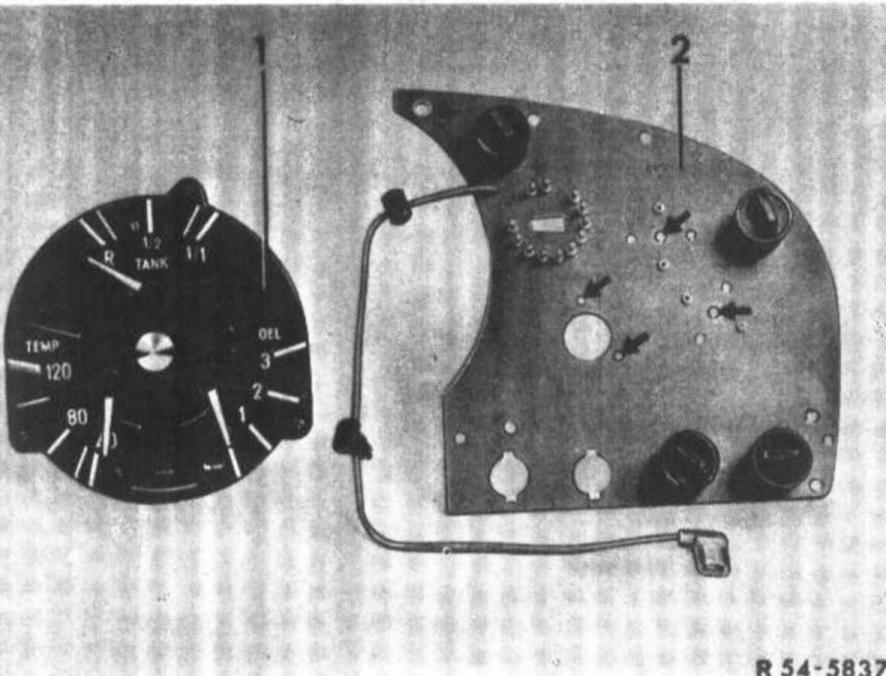

3 Loosen fastening screws (2) of righth and switch plate and completely remove switch plate with indicating instrument.
4 The indicating instrument can be removed after loosening screws and nuts from switch plate.
Installation
5 For installation proceed vice versa.
