TEST 7:

Test 7:

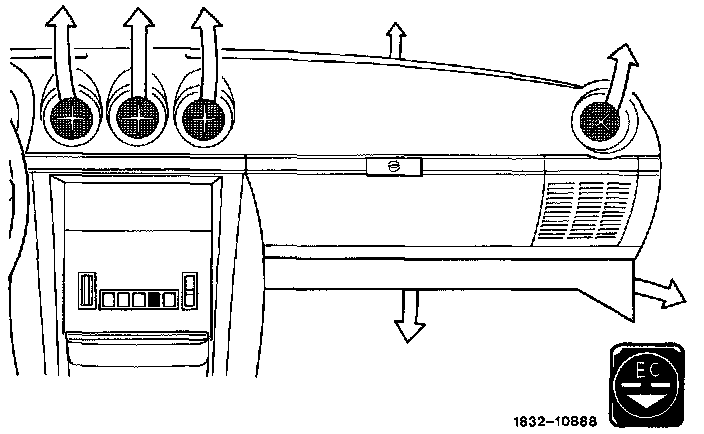

Main Air Flaps - Open:

Test Conditions:
Selector Dial: 22°C
Function Button: "d"
Blower: "AUTOM"

Test Results/Observations:
- Blower switches one stage higher (from 2.8 amps to 3.5 amps or from 2nd to 3rd stage).
- Monovalve cycling (every 4-5 seconds).
- Compressor switched off.
- Main air flaps open (fresh air).
- Recirculating pump running.
