Preparation For Test

PREPARATION FOR TEST:
1. Remove glove box.
2. Remove small cover under instrument panel at the right.

CONNECTING ADAPTER TO VOLT/OHM MEASURING INSTRUMENT:

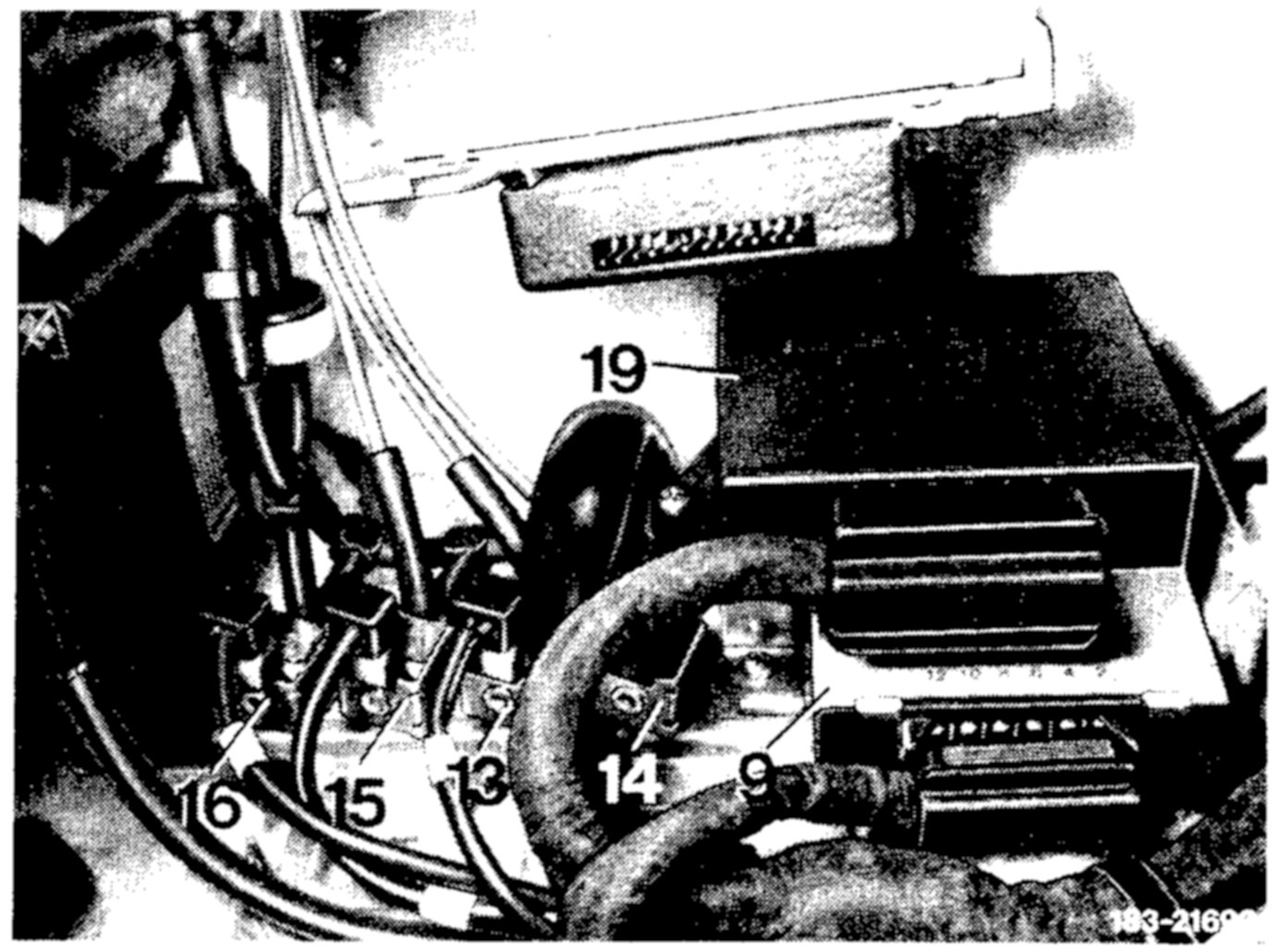

Electronic Control Unit (9) For Temperature Control, Electronic Switching Unit (19) For Blower Control:

Adapter # 126 589 03 21 00:

1. Pull 12-pole coupler from electronic switching unit (9) for temperature control and connect to adapter.
2. Connect adapter with volt/ohm measuring instrument to 12-pole coupler and switch adapter to test step 1.

TEST NOTES:
- Perform test program in the event of unknown causes of trouble, customer complaints which are not clearly expressed and following repairs for guaranteeing all functions.
- Prior to starting the following test, check all fuses for Automatic Climate Control, auxiliary fan and blower motor. It is additionally recommended to perform a manual and optical function test of air flaps.


CAUTION: During electric test on 2-pole coupling of monovalve (with voltmeter, test lamp) be sure to avoid a short, since this may destroy the electronic switching unit for temperature control.
