Service Port HVAC: Locations

Image Reference:
1 Closing cap
2 Valve insert
3 Pipeline
4 Hose line from evaporator to compressor
5 Hose line from compressor to condenser

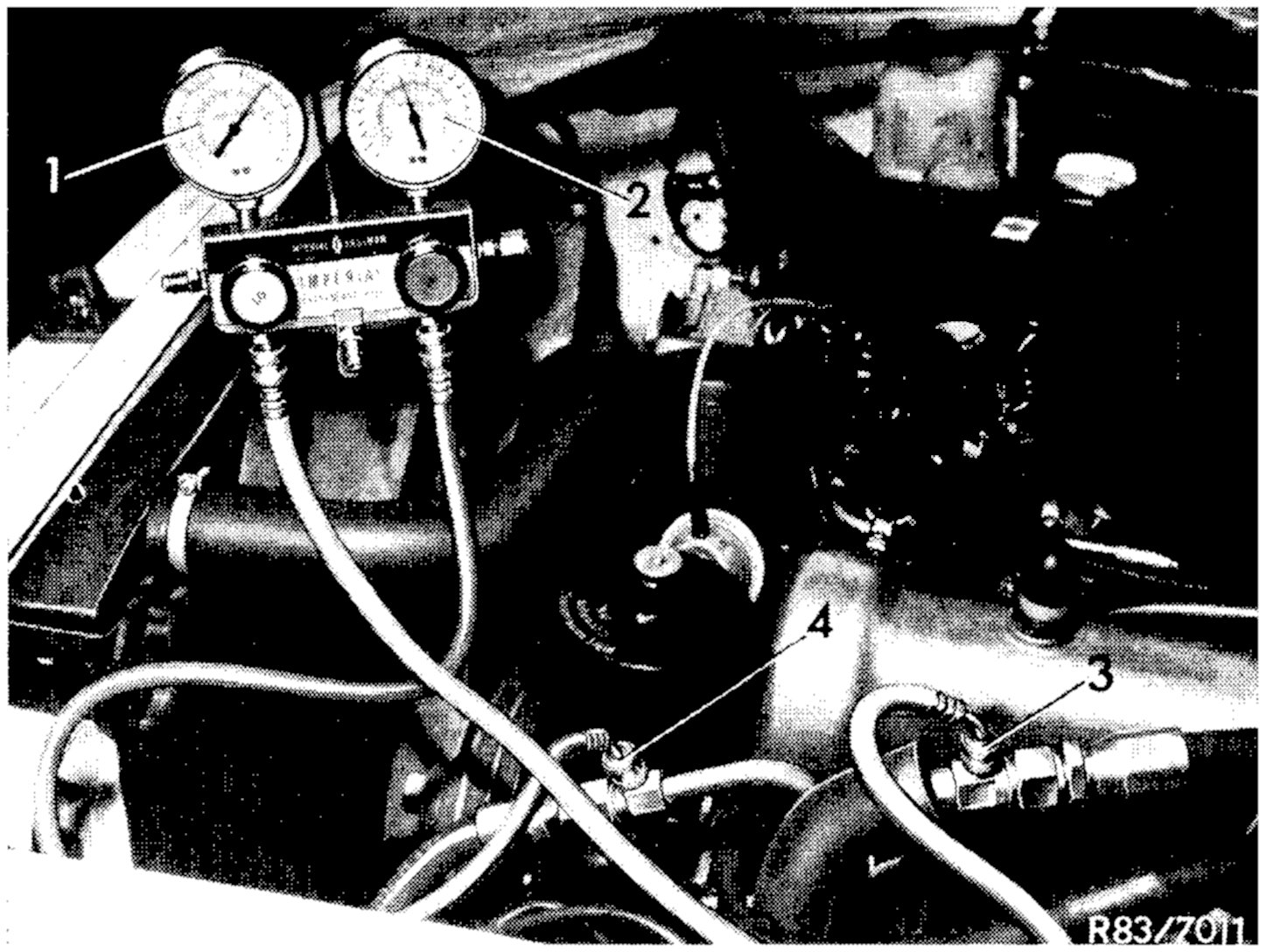

1 Suction pressure gauge
2 High pressure gauge
3 Service valve (suction end)
4 Service valve (pressure end)
