Heater Core Temperature Sensor / Switch: Description and Operation

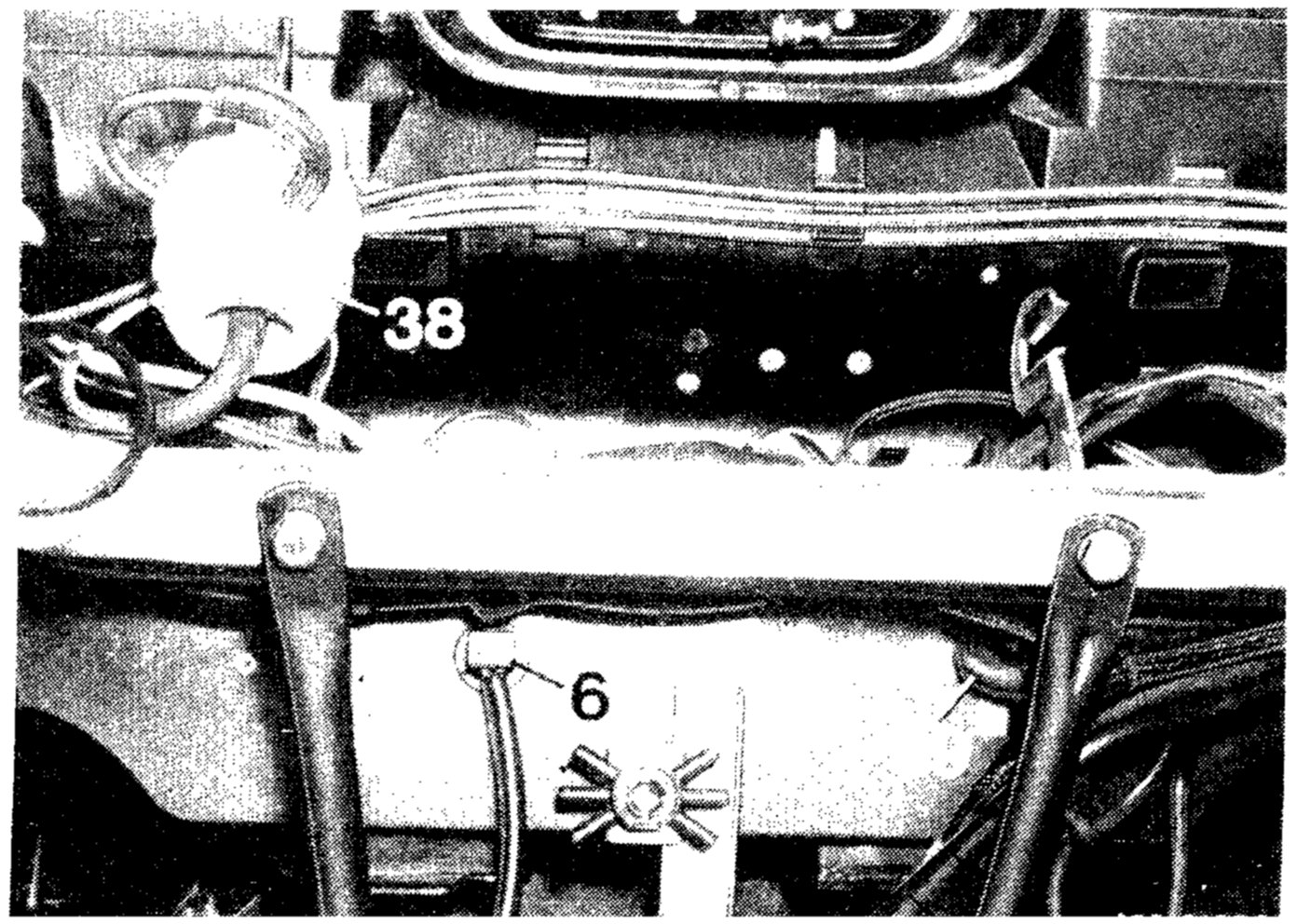

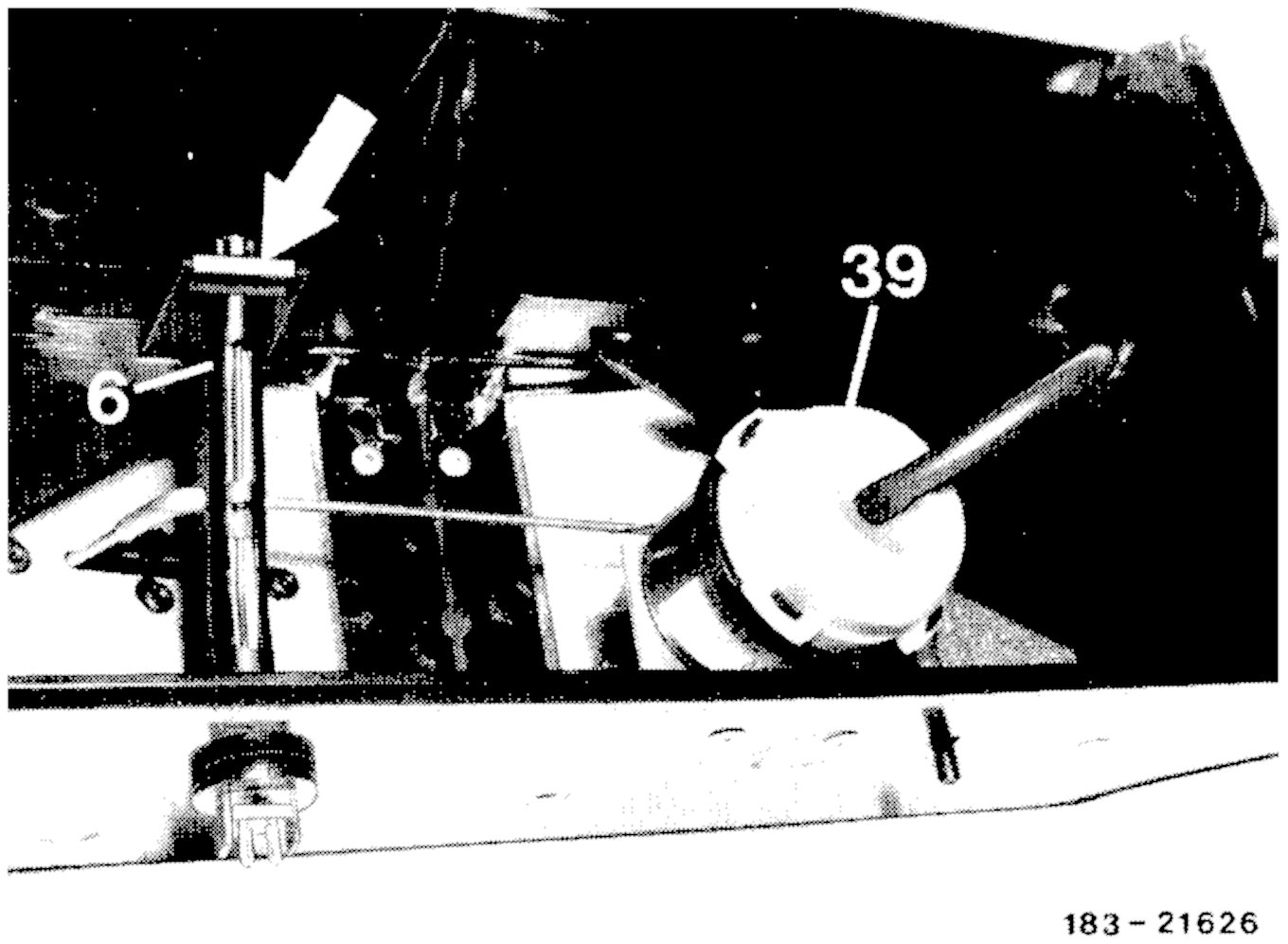

Temperature Sensor (6) For Heat Exchanger:

Electronic Switching Units (9) - Temp & (19) - Blower:

The temperature sensor (6) for heat exchanger is located in air duct center and transmits its resistance to the electronic switching unit (9) for temperature control.
