Air Door Vacuum Solenoid Valve: Service and Repair

REPLACEMENT PROCEDURE:

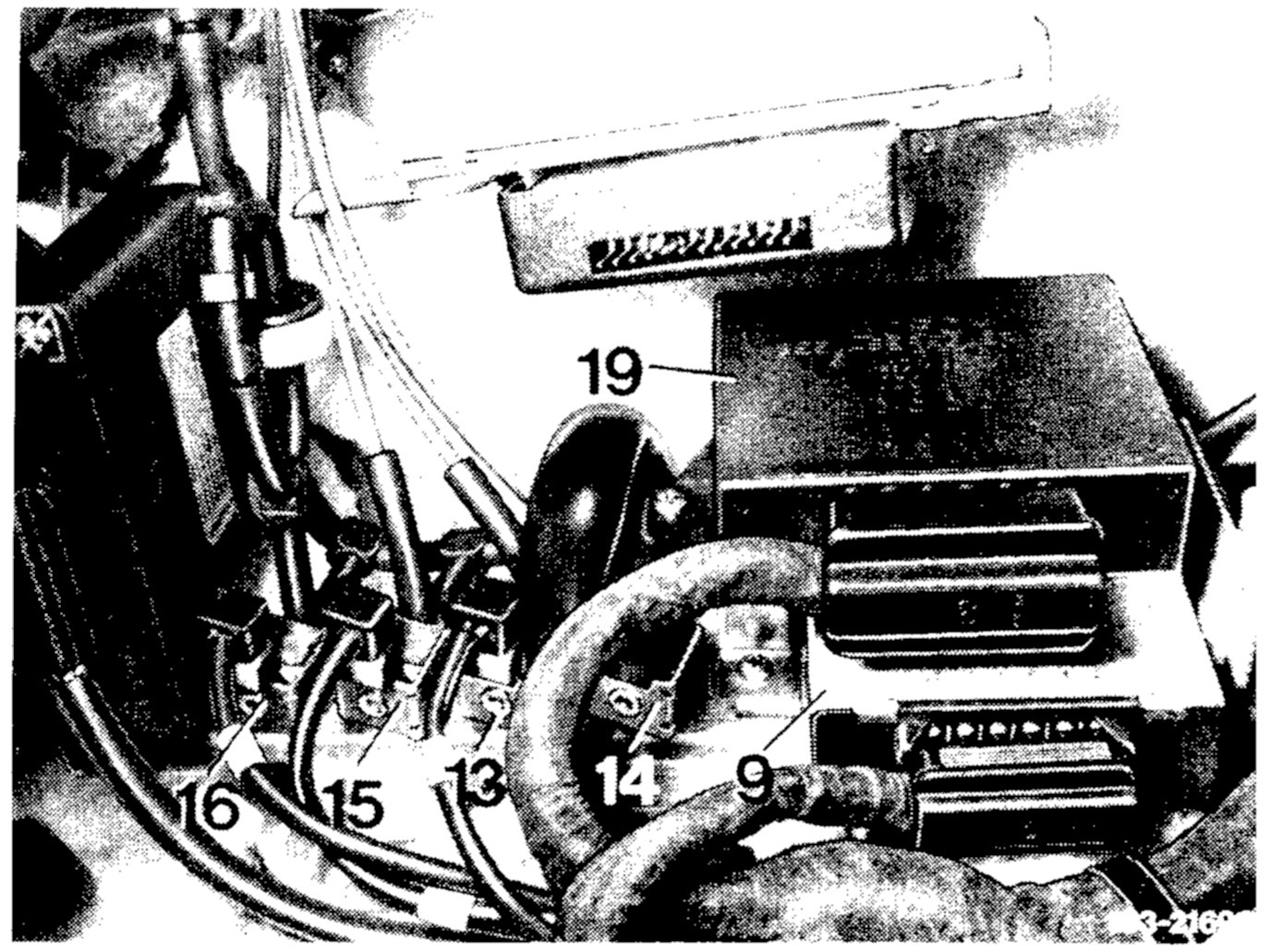

Switchover Valves (13 - 16):

REMOVAL:
1. Remove glove box.
2. Pull vacuum lines from switchover valve (13 to 16), check color code of vacuum lines first, mark if required.
3. Pull off 2-pole couplers and screw switchover valves from holder.

INSTALLATION:
1. For installation proceed vice versa while paying attention to electric and vacuum circuit diagrams.
2. Check automatic climate control for function.
