A. Antenna Does Not Operate
Antenna Operation Test - ElectricalA. Antenna Does Not Operate
Note: Perform check with ignition switch in accessory or run position and radio on.
Refer to Electrical Diagrams for proper radio/antenna schematics. Electrical Diagrams

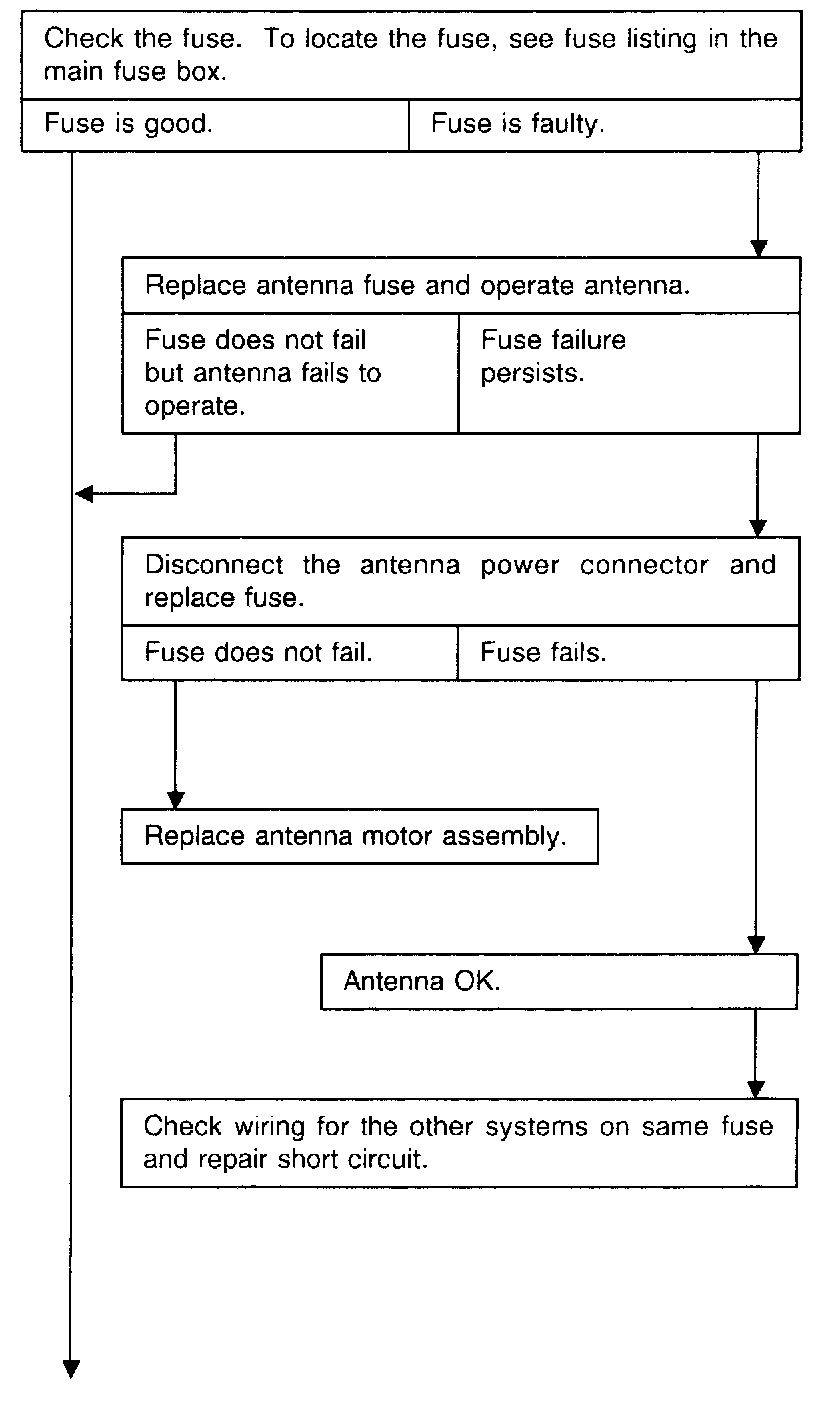

Test Part 1 of 3:

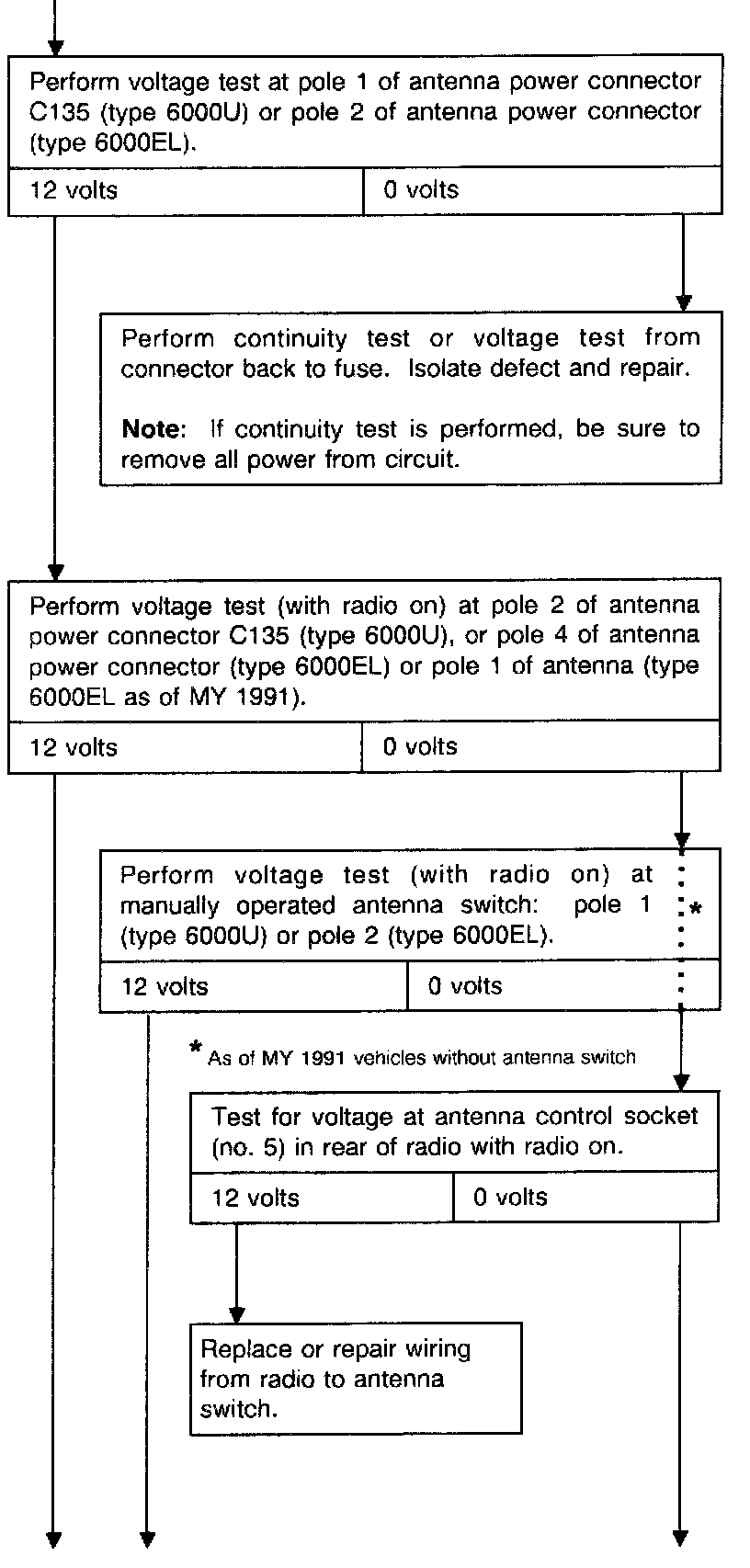

Test Part 2 Of 3:

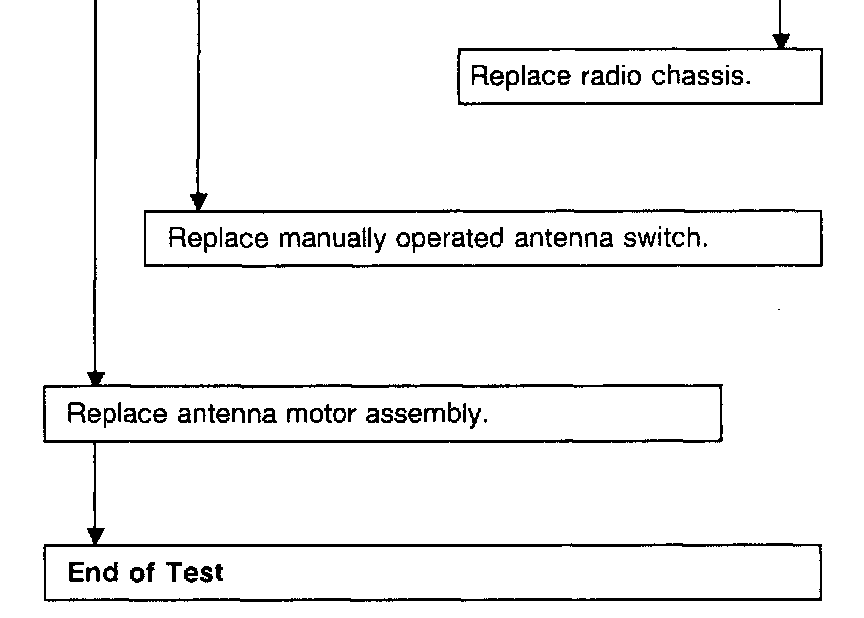

Test Part 3 Of 3:
Radio Connections

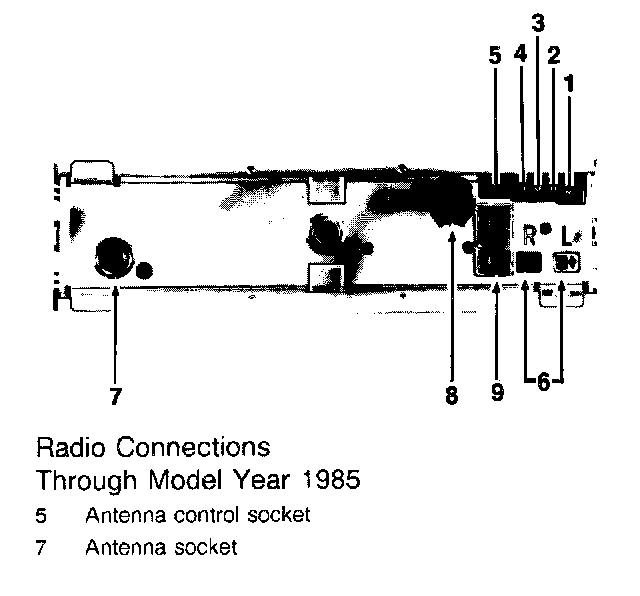

Through MY 1985:

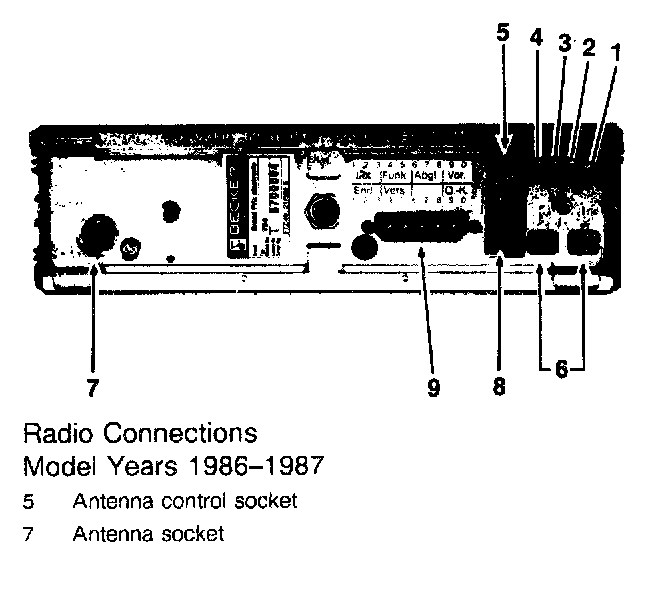

MY 1986-1987:
MY 1988-91 (except 201 As Of MY 90):

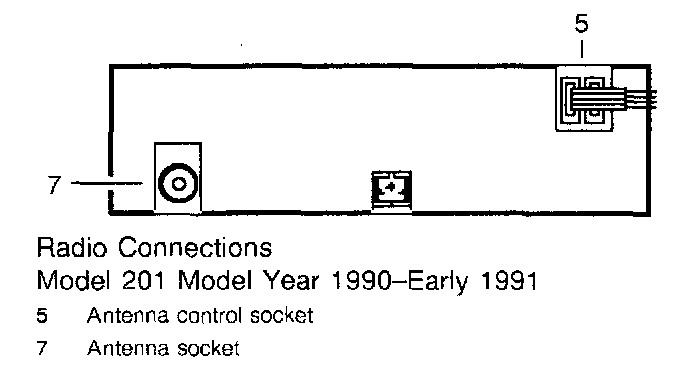

201 MY 1990 - Early 19991:
201 As Of 1991:
